Emerson LB100A APP 1-IN ALUM LB-UNILET 85AS..

Product Description

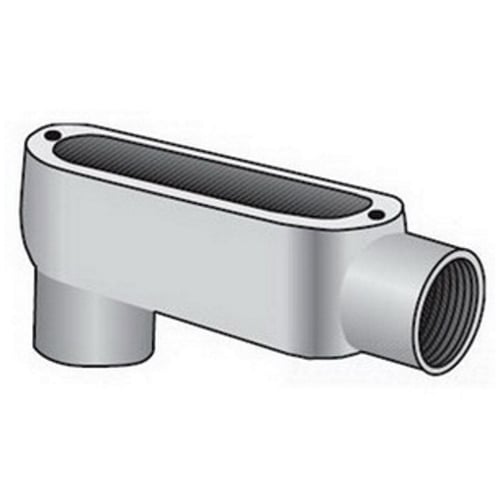

The Emerson LB100A is an Appleton Unilets Conduit Outlet Body. It features a one-inch hub with two hubs and an eleven point eight cubic inch capacity. This product is designed for surface mounting with a NEMA FB-1 enclosure. The body is made of aluminum and is epoxy powder coated for durability.

• Roomy interior for more wiring space
• Smooth, rounded bushings protect conductor insulation
• Lightweight aluminum construction aids in shipping and installation

Product Highlights

This conduit outlet body is suitable for IMC, EMT, and rigid steel or aluminum conduit applications.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• MPN: LB100A

Technical Specifications

• Application: For use with IMC, EMT, rigid steel or aluminum conduit
• Color: Gray
• Connection Type: FNPT
• Dimensions: Six inches length x two point sixty-three inches width x two point eighty-one inches height
• Enclosure: NEMA FB-1
• Finish: Epoxy Powder Coated
• Hub Size: One inch
• Material: Aluminum
• Mounting Type: Surface
• Number of Hubs: Two
• Standards/Approvals: CSA C22.2 No. 18.3, NEMA FB-1, UL 514A, UL 514B
• Type: Type LB
