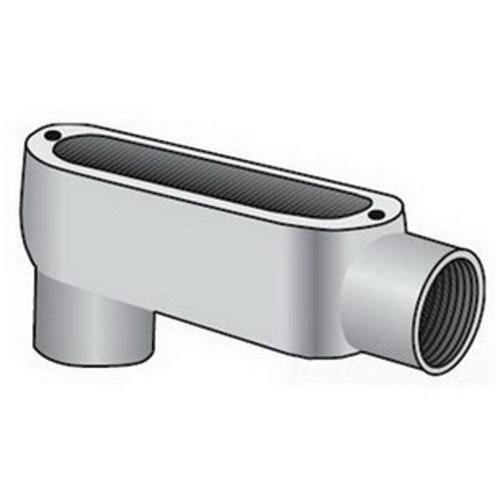

Emerson LB-200 LB Conduit Outlet Body, 2 in Hub, 77.5 cu-in, Replacement MPN

Product Description

The Emerson LB-200 is an O-Z/Gedney type LB conduit outlet body. This unit features a two-inch hub and provides an internal volume of seventy-seven point five cubic inches. It is made of malleable iron with an aluminum enamel and zinc electroplated finish. The dimensions are ten and five-eighths inches long and three and one-quarter inches wide. This conduit outlet body is ideal for use in electrical systems for connecting and changing the direction of conduit runs.

• Interchangeable with other manufacturers styles.
• High corrosion resistance and durability.
• Compatible with both pulling and maintenance access.

Product Highlights

The LB-200 is built for rigid and IMC conduit applications, ensuring a tight, secure fit and excellent ground continuity.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312632855

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Connection Type: Tapered FNPT
• Dimensions: 10-5/8 in L x 3-1/4 in W
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Hub Size: 2 in
• Manufacturer Part Number: LB-200
• Material: Malleable Iron
• Mounting Type: Surface
• Number of Hubs: 2
• Standards/Approvals: ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)
• Type: Type LB
