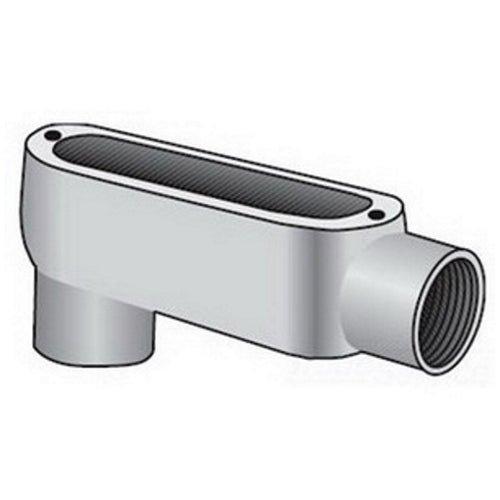

Emerson LB-150 LB150 OZ 1-1/2 Iron Cond Body

Product Description

The Emerson LB-150 is a conduit outlet body designed for Rigid and IMC conduit applications. This product features a one and one-half inch hub and two hubs in total, providing a capacity of thirty-five point eight cubic inches. Constructed from malleable iron with aluminum enamel/zinc electroplating, it is built for durability and corrosion resistance.

• Type LB conduit outlet body
• Suitable for surface mounting
• Meets NEMA FB-1 enclosure standards

Product Highlights

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312632835

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Connection Type: Tapered FNPT
• Dimensions: 8-1/4 in L x 2-5/8 in W
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Hub Size: 1-1/2 in
• Manufacturer Part Number: LB-150
• Material: Malleable Iron
• Mounting Type: Surface
• Number of Hubs: 2
• Standards/Approvals: ARRA Compliant|UL 514A File No. E18095|C22.2 No. 18/009795 Certified|Federal Specification A-A-50563|Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)
• Type: Type LB
