Emerson LACA-032E-TAC-800 Compressor 208-230/3 5/8 inches F x 1-1/8 inches S

Product Description

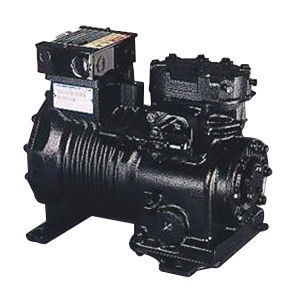

The EMERSON LACA-032E-TAC-800 is a semi-hermetic R404 Copelametic compressor designed for refrigeration applications. It operates at 208-230V and features a 5/8" flare discharge line and a 1-1/8" sweat suction line. This compressor is UL certified for low-temperature refrigeration and is suitable for use with R-404A refrigerant.

• Designed for refrigeration applications.
• Features a 5/8" flare discharge and 1-1/8" sweat suction line.
• Suitable for use with R-404A refrigerant.

Product Highlights

Semi-hermetic compressor for refrigeration, featuring a flare discharge and sweat suction line, designed for R-404A refrigerant.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: LACA-032E-TAC-800

Technical Specifications

• Application: Refrigeration
• Refrigerant: R-404A
• Body Type: LA
• Dimensions: 18.63 in L x 14 in W x 14.72 in H
• Electrical: 208/230-3-60
• Frequency: 60Hz
• Height: 14.72"
• Length: 18.63"
• Liquid Line Size: 5/8"F
• Mounting Dimensions: 11.63" x 11"
• Phase: Three
• Series-Brand: Copelametic
• Suction Line Size: 1-1/8 in Sweat
• Temperature Rating: -40 to -25 deg F Evaporator, 105 deg F Condensing, 65 deg F Return Gas, 105 deg F Liquid
• Voltage: 208/230V
• Width: 14"
• Amperage Rating: 10.8 A
• BTU Rating: 14600 Btu/hr
• CFM Rating: 13.6 cfm
• Compressor Oil: POE
• Discharge Line Size: 5/8 in Flare
• EER Rating: 3.7 to 4.8
• Flow Rate: 145 to 262 lb/hr
• Power Rating: 3070 W, 3 hp
• Refrigerant Type: R-404A, HFC
• Series: LA
• Speed Rating: 3500 rpm
• Voltage Rating: 208 to 230 VAC
• OIL TYPE: POLYOLESTER
• MOTOR TYPE: 3-PHASE
• SUCTION SIZE: 1-1/8 INCH SOLDERED
• DISCHARGE SIZE: 5/8 INCH FLARE
• CURRENT RATING: 12.8 AMP (RATED LOAD), 17.9 AMP (MAXIMUM CONTINUOUS), 112 AMP (LOCKED ROTOR)
• MOTOR RATING: 3 HP
• MODEL: LA MODEL
