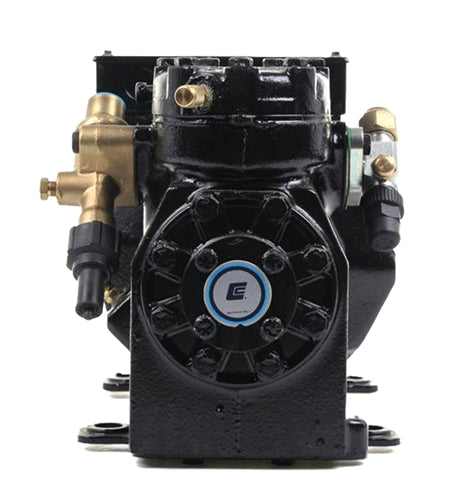

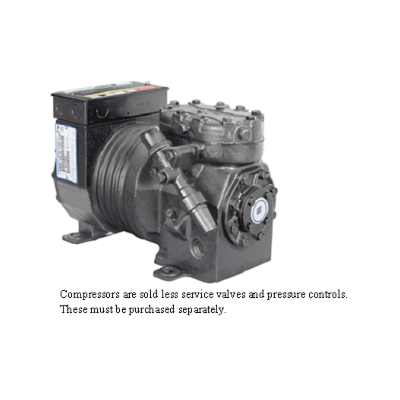

Emerson KALB-015E-CAV-800 Compressor, 208-230/1/60 1/2 inches x 7/8 inchesS Semi-Hermetic R404A Copelametic

Product Description

The EMERSON KALB-015E-CAV-800 is a semi-hermetic R404A Copelametic compressor designed for refrigeration applications. It operates at 208-230V, 60Hz, and single-phase power. The compressor features a 1/2" liquid line size and 7/8" suction line size. It is designed with a KA body and suitable for high and low temperature refrigeration conditions.

• Copelametic Accessible Semi-Hermetic Compressors
• KA Body
• High and Low Temperature Refrigeration Conditions

Product Highlights

This semi-hermetic compressor is ideal for commercial refrigeration, offering reliable performance under varying temperature conditions.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: KALB-015E-CAV-800
• Country of Origin: USA

Technical Specifications

• Phase: 1-phase
• Height: 10.44"
• Length: 14.38"
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R404A
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• Mounting Dimensions: 8.19" x 6.38" x 11.19"
• Product Type: Compressor
• BTUs: 5,720
• Rated Load Amps: 9.9
• Oil Type: POE
• Body Type: KA
• Suction Line Size: 7/8"
• Temperature Rating: High/Low
• Voltage: 208/230V
• Width: 9.5"
• HP/Ton: 1.5
• Electrical: 208/230-1-60
