Emerson KAJB-010E-CAV-800 Compressor, 208-230/1/60 1/2 inches F x 5/8 inches F

Product Description

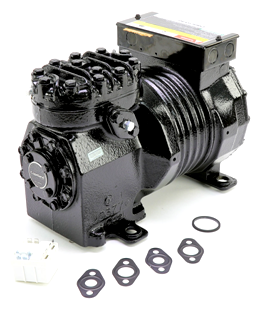

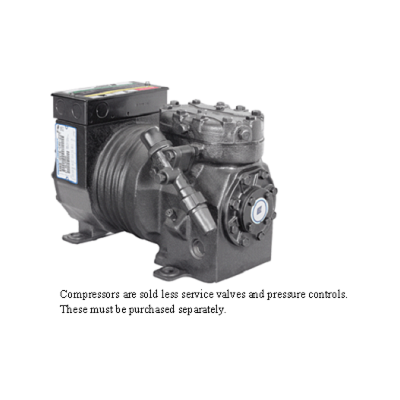

The EMERSON KAJB-010E-CAV-800 is a semi-hermetic compressor designed for refrigeration applications. It utilizes R404A refrigerant and operates on a 208-230/1/60 power supply. The compressor features a 1/2" F liquid line size and a 5/8" F suction line size. It is designed for low, medium, and high temperature refrigeration.

• Designed for refrigeration applications
• Utilizes R404A refrigerant
• Operates on 208-230/1/60 power supply

Product Highlights

Semi-hermetic compressor for refrigeration with R404A refrigerant and 208-230/1/60 power.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: KAJB-010E-CAV-800

Technical Specifications

• Application: Refrigeration
• Refrigerant: R404A
• Series-Brand: Copeland
• Liquid Line Size: 1/2"F
• Phase: 1-phase
• Frequency: 60Hz
• Height: 10.44"
• Length: 14.38"
• Mounting Dimensions: 8.19" x 6.38"
• Body Type: KA
• Electrical: 208/230-1-60
• Suction Line Size: 5/8"F
• Temperature Rating: High
• Voltage: 208/230V
• Width: 9.5"
• HP/Ton: 1
• Volts: 208/230
• TYPE: COMPRESSOR, SEMI-HERMETIC, AIR COOLED
• REFRIGERATION: LOW/MEDIUM/HIGH TEMPERATURE REFRIGERATION USED ON ITEM
• REFRIGERANT TYPE: R12/R134A/R22/R404A/R448A/R449A/R502
• OIL TYPE: POLYOLESTER
• MOTOR TYPE: RUN/START CAPACITOR
• SUCTION SIZE: 5/8 INCH FLARE
• DISCHARGE SIZE: 1/2 INCH FLARE
• VOLTAGE RATING: 200/220 VOLT AC 50 HERTZ 1-PHASE AND 208/230 VOLT AC 60 HERTZ 1-PHASE
• CURRENT RATING: 6.9 AMP (RATED LOAD), 9.7 AMP (MAXIMUM CONTINUOUS), 40 AMP (LOCKED ROTOR)
• MOTOR RATING: 1 HP
• MODEL VARIATION: B
• MODEL: KA
