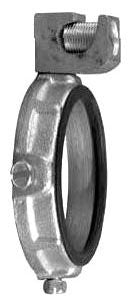

Emerson GIB-200LS-20AC Appleton GIB-200LS-20AC 2 Set Screw Grounding Bushing

Product Description

The Emerson GIB-200LS-20AC is a reliable insulated grounding bushing designed for use with threaded rigid metal conduit and IMC. This product features a malleable iron body with zinc electroplated finish and a tin-plated aluminum lay-in lug.

• Trade Size: 2 inches
• Wire Size: 14 AWG solid up to 2/0 AWG stranded
• Temperature rating: 150 degrees Celsius

Product Highlights

This grounding bushing effectively fastens and grounds threaded rigid metal conduit to an enclosure. It uses a set screw for easy installation.

Product Information

Standard Information

• Brand: Emerson Electric Co.
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog number: GIB-200LS-20AC
• Diameter: 2.81 inches
• Height: 0.75 inches
• Material: Zinc plated malleable iron, zinc plated steel set screw
• Lug type: Aluminum lay-in
• Conductor material: Copper/Aluminum
• Approval: UL 467, CSA C22.2
• Turning radius: 2.25 inches
