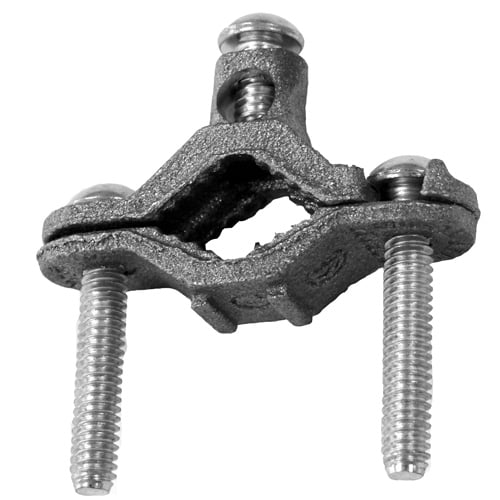

Emerson GC-4 Ground Clamp 2-1/2 to 4 in Pipe 10 to 2 AWG

Product Description

The Emerson GC-4 is a ground clamp designed to connect bare copper conductors to various surfaces. This clamp accommodates pipe sizes ranging from two and a half inches to four inches and works with conductors of sizes 10 to 2 AWG. Made of cast bronze, it provides durable and reliable connections.

• Clamp fits pipe sizes from 2-1/2 inches to 4 inches.
• Compatible with conductor sizes from 10 to 2 AWG.
• Constructed from cast bronze with a hot-dipped galvanized finish.

Product Highlights

The GC-4 ground clamp is ideal for use in electrical applications where reliable grounding is required.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785525004

Technical Specifications

• Application: For use on bare copper conductor, water pipes, conduits and pipe electrodes
• Conductor Size: 10 to 2 AWG
• Dimensions: 6.38 inches long
• Finish: Hot Dipped Galvanized
• Includes: Steel/Zinc Plated Screw
• Manufacturer Part Number: GC-4
• Material: Cast Bronze
• Pipe Size: 2-1/2 to 4 inches
• Series: GC Series
• Standards/Approvals: UL 467, File No. E37337 Listed; CSA C22.2 No. 41; CSA 208044 Certified; NEMA FB-1
