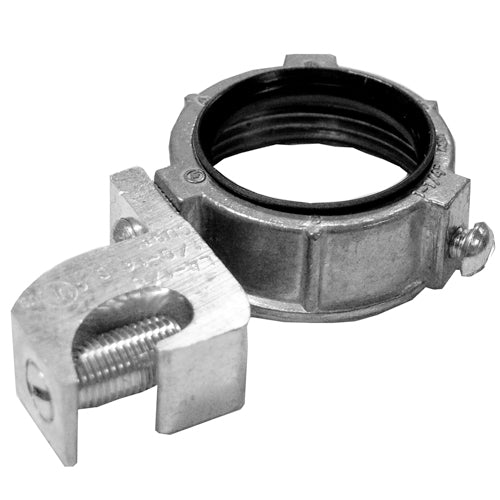

Emerson GBL-800 GBL-800 APP 3IN INSUL ZINC GRD BUSHING

Product Description

The Emerson GBL-800 is a grounding bushing designed for use with 14 to 1/0 AWG AC cables. This unit fits a three-inch trade size and comes with insulation. It is made of zinc and features a threaded mounting for easy installation.

• Low surface friction allows for easy wire pulling.
• Set screw ensures the bushing locks into position.
• Compatible with copper and aluminum grounding conductors.

Product Highlights

This grounding bushing is suitable for terminating rigid metal conduits or IMC conduits to electrical boxes or enclosures.

Product Information

Standard Information

• Brand: Emerson Electric
• MPN: GBL-800

Technical Specifications

• AC Cable Size: 14 to 1/0 AWG
• Application: Terminate rigid metal or IMC conduit
• Dimensions: 3.85 in Dia x 0.83 in THK
• Insulated Non Insulated: Insulated
• Material: Zinc
• Mounting Type: Threaded
• Series: GBL
• Standards/Approvals: CSA Certified, UL Listed
• Temperature Rating: 302 deg F
• Trade Size: 3 in
