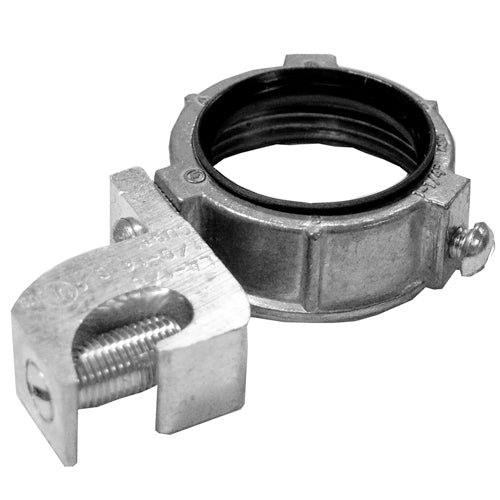

Emerson GBL-300 APP 1-IN INSUL ZINC GRD BUSHING

Product Description

The Emerson GBL-300 is a grounding bushing designed for use with 14 to 4 AWG AC cable. This product features a trade size of one inch and is suitable for insulated applications. The bushing is threaded for secure mounting and constructed from zinc for durability.

• Low surface friction allows for easy wire pulling without damaging insulation.
• Includes a set screw to lock the bushing into position.
• Compatible with copper and aluminum grounding conductors.

Product Highlights

This grounding bushing provides reliable performance and is CSA certified and UL listed for adherence to safety standards.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Product SKU: 2168676

Technical Specifications

• AC Cable Size: 14 to 4 AWG
• Application: For use with a locknut to terminate rigid metal conduit or IMC conduit to a box or enclosure
• Dimensions: 1.53 inches diameter x 0.6 inches thick
• Insulated Non Insulated: Insulated
• Manufacturer Part Number: GBL-300
• Material: Zinc
• Mounting Type: Threaded
• Series: GBL
• Standards/Approvals: CSA Certified|UL Listed
• Temperature Rating: 302 degrees F
• Trade Size: 1 inch
