Emerson 806759 bvs118 Ball Valve with Access 1-1/8 inches 062118

Product Description

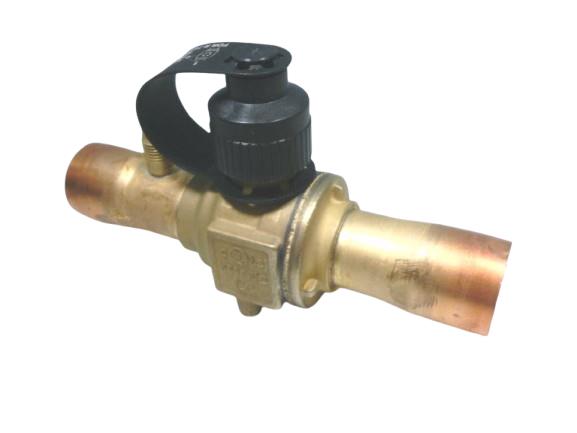

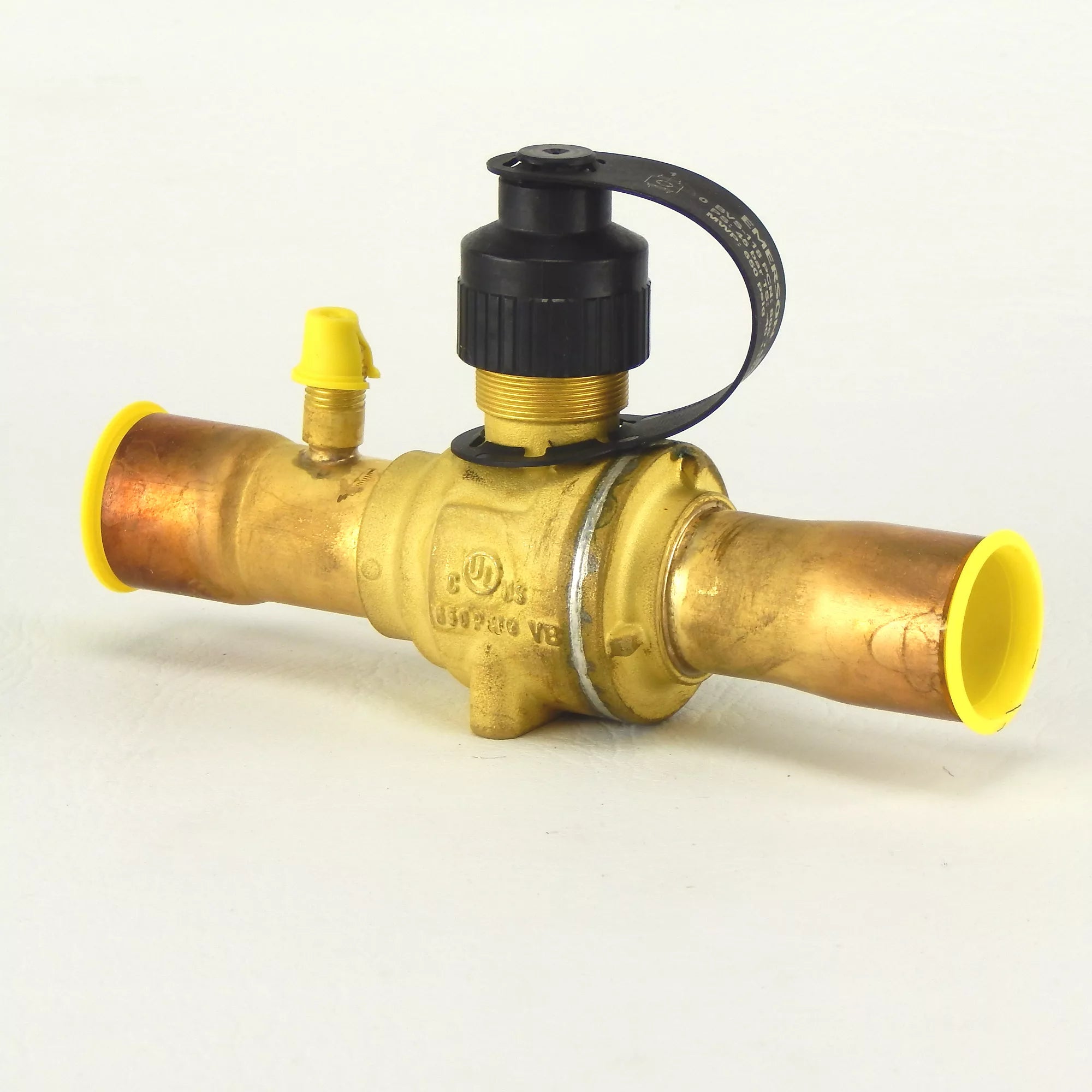

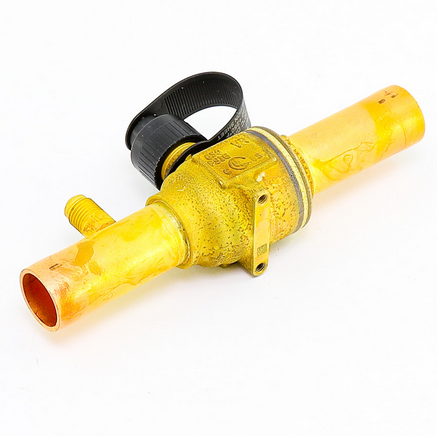

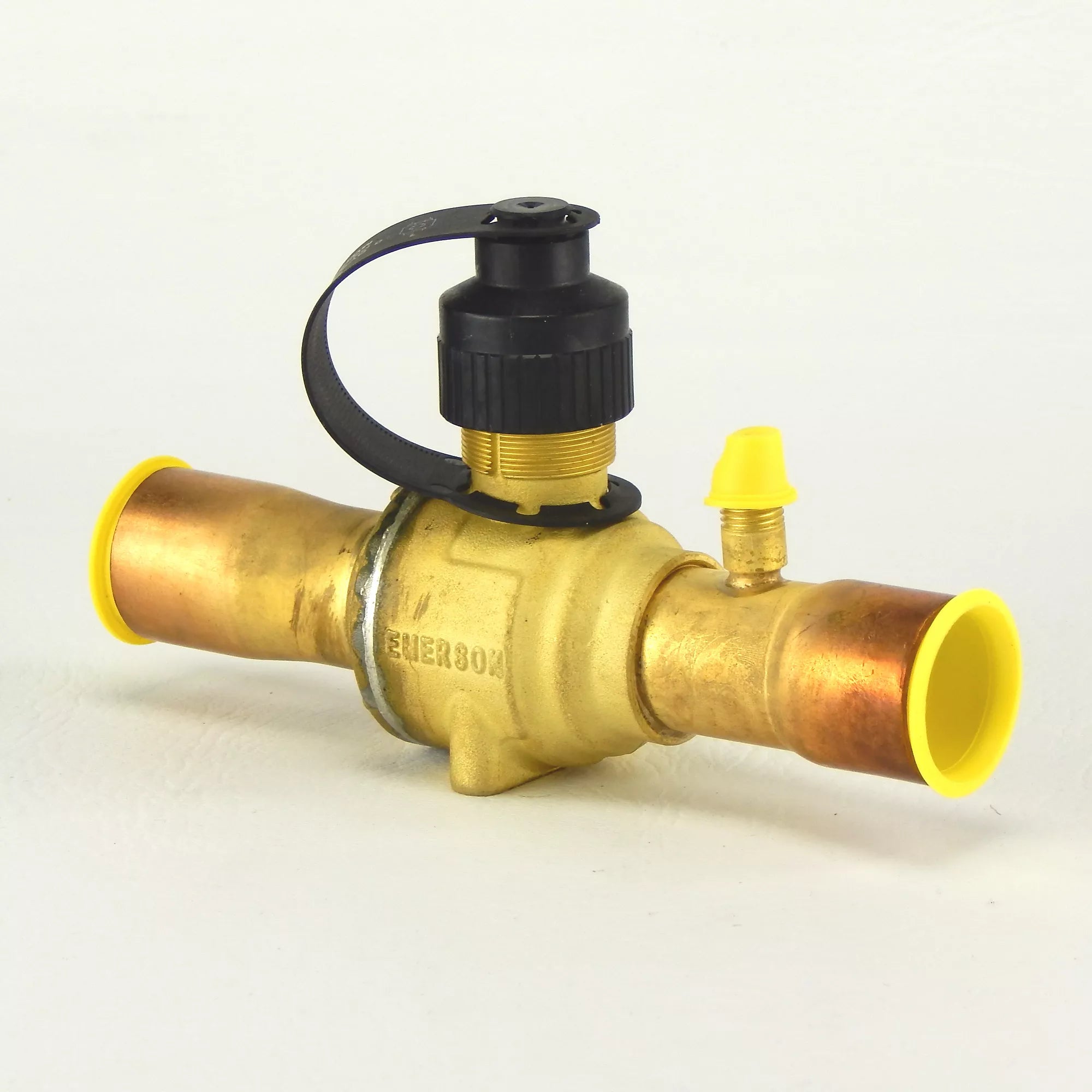

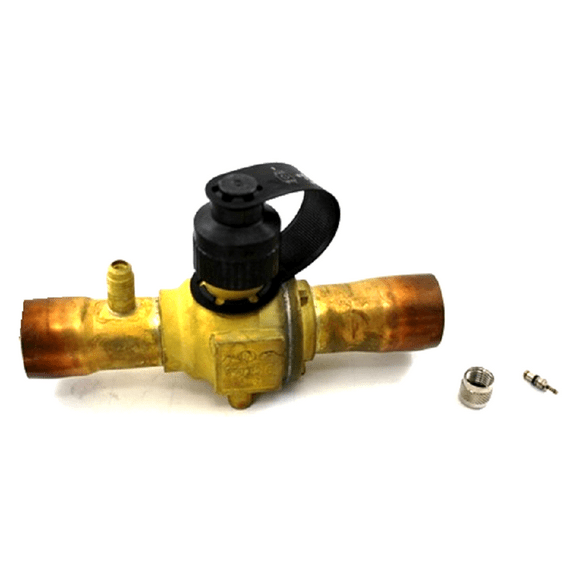

The Emerson 806759 BVS118 series welded refrigeration ball valve isolates suction, discharge, and liquid line pipework during maintenance shutdown periods. Forged brass body with a compact, lightweight, hermetic welded design. Compatible with HCFC and HFC refrigerants/lubricants including R-410A and CO2. Features bi-directional flow characteristics.

• Forged brass body
• Compact, lightweight, hermetic welded design
• Compatible with HCFC and HFC refrigerants/lubricants including R-410A and CO2
• Full flow design

Product Highlights

The Emerson 806759 ball valve features a forged brass body, bi-directional flow, and is compatible with various refrigerants. It includes an integrated access port and is suitable for isolating pipework during maintenance.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 806759
• Country of Origin: US

Technical Specifications

• Brand: Emerson
• MPN: 806759
• Connection Size: 1 1/8"
• Connection Type: Sweat or Braze
• Composition: Forged Brass body, 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40F to 250F (302F Short Term)
• UL Listed: Yes
• UL Recognized: No
• Width: 2.25
• Height: 4.25
• Length: 7.25
• Prop 65: Yes
• Country of Origin: CZE
• Category: Valves
• Subcategory: Ball Valve
• Model: 806759
