Emerson 806752 BVS038 3/8 inches Ball Valve with Access

Product Description

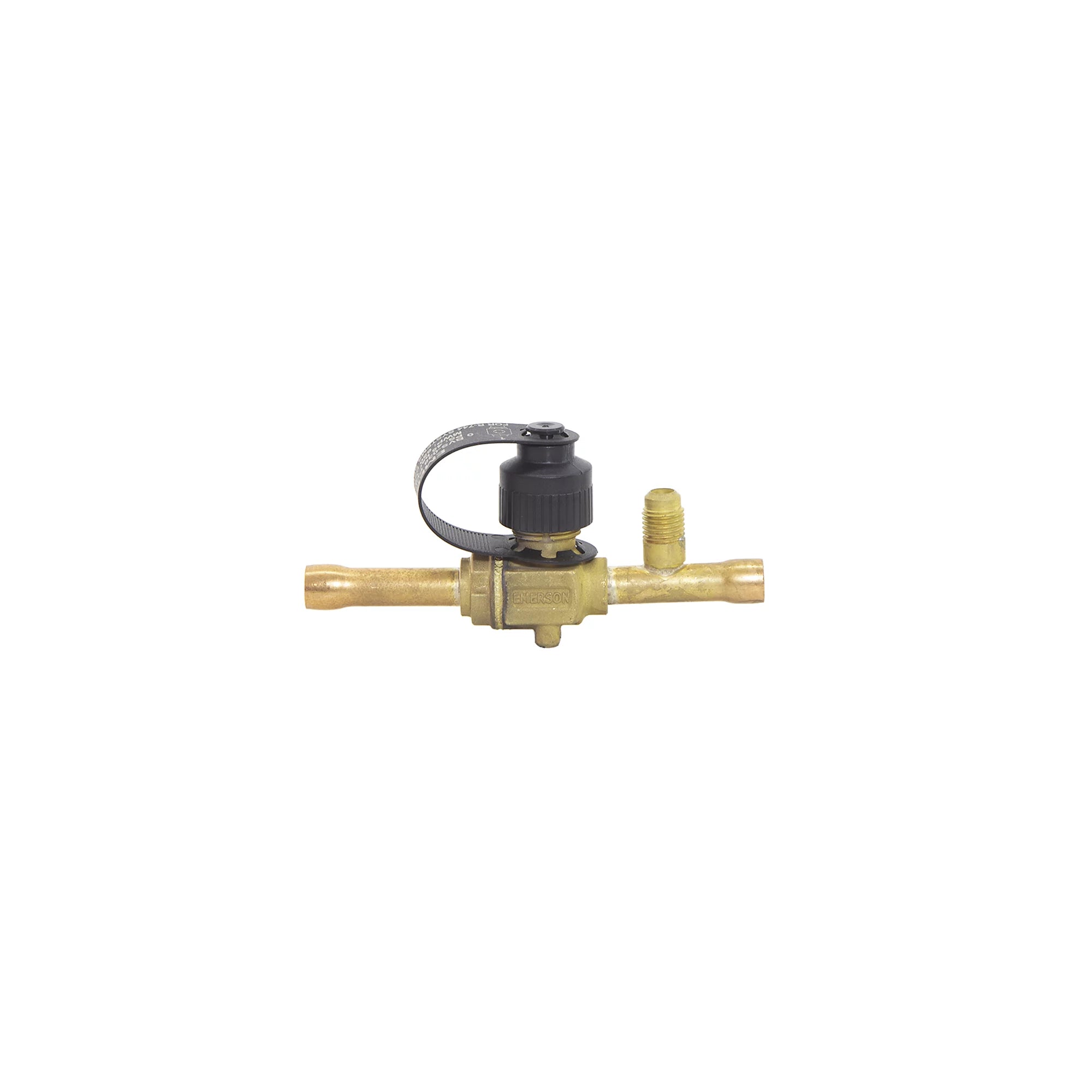

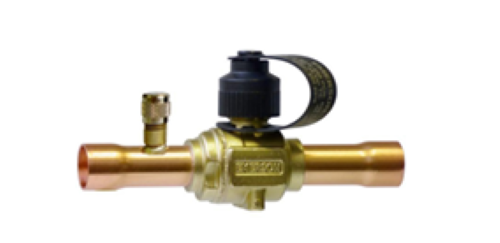

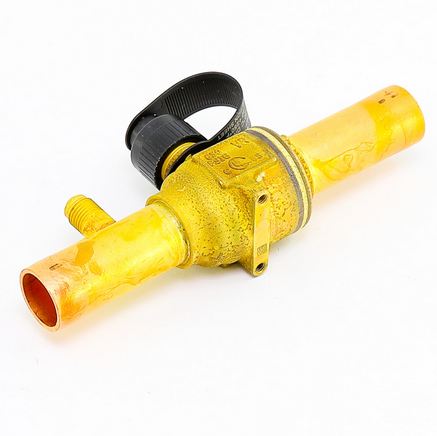

The Emerson 806752 BVS038 is a refrigeration ball valve designed to isolate suction, discharge, and liquid line pipework during maintenance shutdown periods. It features a forged brass body and a compact, lightweight, hermetic welded design. Compatible with HCFC and HFC refrigerants/lubricants including R-410A and CO2.

• Forged brass body
• Compact, lightweight, hermetic welded design
• Compatible with HCFC and HFC refrigerants/lubricants including R-410A and CO2
• Full flow design

Product Highlights

This Emerson ball valve has bi-directional flow characteristics, an integrated access port, and a valve stem cap retained by a strap attached to the main body.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 806752
• Country of Origin: CZE

Technical Specifications

• Brand: Emerson
• Composition: Forged Brass body, 100% Copper Connections
• Connection Size: 3/8"
• Connection Type: ODF
• Height: 1.75
• Length: 3.75
• OPT Code: EMERSON 806752
• Prop 65: Yes
• UL Listed: Yes
• UL Recognized: No
• Inlet Connection Size: 3/8” ODF Solder
• Outlet Connection Size: 3/8” ODF Solder
• Access Valve: Port Size
• Body Design: Forged Brass
• Construction: Extended Tubes, 100% Copper Connections
• Maximum Working Pressure: 650 psig
• Fluid Temperature Range: -40°F to 250°F (302°F short term)
• Approvals: UL/CUL File Number SA5312
• Type: Refrigeration Ball Valve
• Category: HVAC & Refrigeration Valves
• Full Port: None
