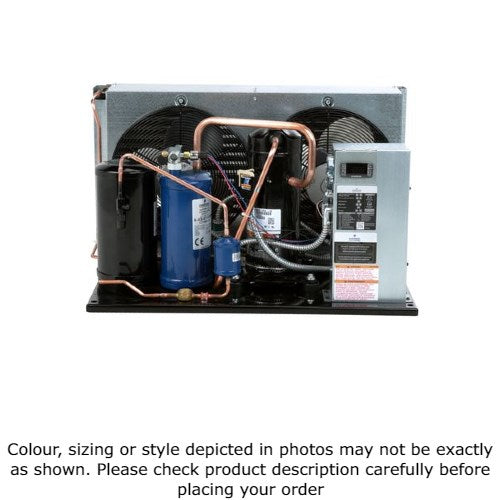

Emerson FFAL-A22Z-TFC-072 Condensing Unit, 2-1/4 hp 208-230/3/60 Scroll 3/8 inches x 7/8 inches

Product Description

The EMERSON FFAL-A22Z-TFC-072 is a condensing unit with 2-1/4 hp, designed for refrigeration applications. It operates on 208-230V, 3-phase power at 60Hz, and features a scroll compressor. The unit includes 3/8" liquid line and 7/8" suction line connections. It is air-cooled and compatible with multiple refrigerants.

• Features a scroll compressor for efficient operation.
• Designed for refrigeration applications.
• Operates on 208-230V, 3-phase power at 60Hz.

Product Highlights

This condensing unit is ideal for refrigeration systems requiring a 2-1/4 hp compressor and compatibility with multiple refrigerants.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: FFAL-A22Z-TFC-072

Technical Specifications

• Type: Condensing Unit
• Phase: 3 ph
• Voltage: 208/230V
• Frequency: 60 Hz
• Application: Refrigeration
• Refrigerant: Multiple
• Series-Brand: Copeland
• Compression Type: Scroll
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Amperage Rating: 16 A
• BTU Rating: 4200 to 18700 Btu/hr
• EER Rating: 8.172
• HP Rating: 2-1/4 hp
• Refrigerant Type: R-134A, R-22, R-404A, R-407A, R-407C, R-448A, R-449A, R-507
• Series: F-Line Series
• Additional Information: 20 A Fuse Rating
