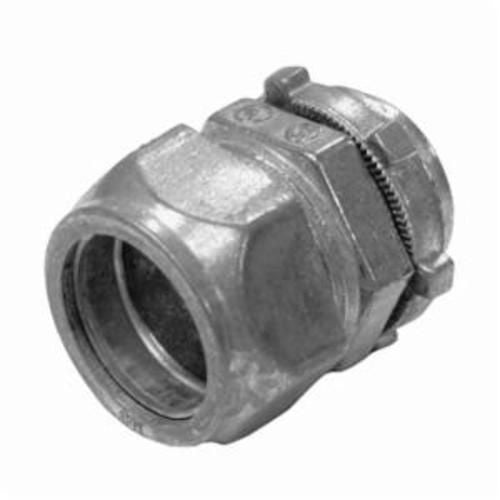

Emerson Electric TC-604 TC-600 Non-Insulated Straight Gland Compression Connector 1-1/4 in

Product Description

The Emerson Electric TC-604 is a gland compression connector designed for EMT conduit applications. This connector is non-insulated and belongs to the TC-600 series. It features a trade size of 1-1/4 inches and is made from die-cast zinc material.

• For securing and terminating EMT in concrete-tight applications
• Durable die-cast zinc construction
• Meets CSA and UL standards

Product Highlights

This connector is suitable for both dry and damp locations. It provides a reliable and secure connection for EMT conduit, enhancing the integrity of electrical installations.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785510604

Technical Specifications

• Type: Non-Insulated Straight
• Application: For securing and terminating steel EMT to knockouts in concrete-tight box or dry/damp locations applications
• Material: Die Cast Zinc
• Trade Size: 1-1/4 inches
• Dimensions: 1.74 inches long
• Finish: Natural
• Series: TC-600
• Standards/Approvals: CSA 208044|CSA C22.2 No. 18.3|NEMA FB-1|UL 514B File No. E35001
• Suitable For Use With: EMT Conduit
