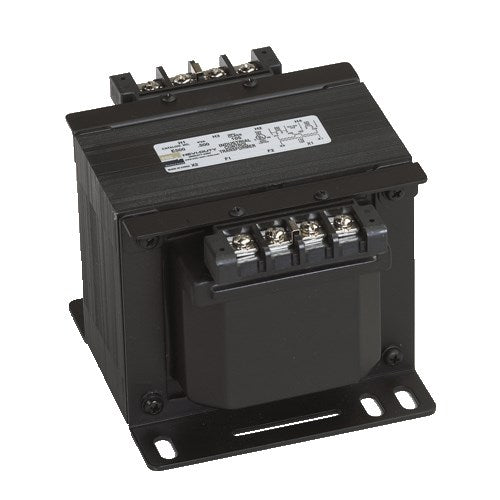

Emerson Electric E250 E250 HEV 0.25kVA I.C. SBE ENCAP 240X480-120V XFMR

Product Description

The Emerson Electric E250 is a control transformer designed for industrial applications. This encapsulated transformer operates with a primary voltage of 240/480 VAC and a secondary voltage of 120 VAC, delivering a power rating of 0.25 kVA. It is suitable for a variety of environments and features robust construction for reliable performance.

• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Power Rating: 0.25 kVA

Product Highlights

This transformer supports a frequency range of fifty to sixty hertz and is built to withstand various industrial conditions.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: E250

Technical Specifications

• Application: World Wide and Industrial Applications
• Connection Type: Wire Lead
• Dimensions: 4.79 in L x 4.5 in W x 3.89 in H
• Enclosure: IP20
• Frequency Rating: 50/60 Hz
• Insulation: 105 deg C
• Power Rating: 0.25 kVA
• Secondary Voltage: 120 VAC
• Phase: 1
• Temperature Rating: 131 deg F
• Series: SBE
• Standards/Approvals: RoHS Compliant, cULus File No. E77014, UL 506, CSA C22.2 No. 66, ANSI C89.1
