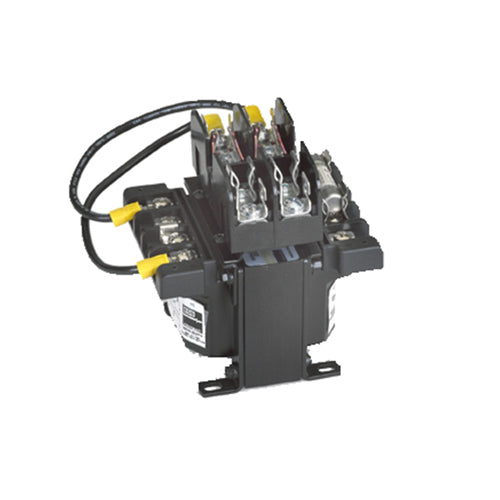

Emerson Electric E150 HEV .15KVA I.C. SBE ENCAP 240X480-120V XFMR

Product Description

The Emerson Electric E150 is a SolaHD encapsulated control transformer designed for various industrial applications. This model operates with a primary voltage of 240/480 VAC and a secondary voltage of 120 VAC, offering a power rating of 0.15 kVA. It is suitable for both 50 Hz and 60 Hz frequencies, which makes it versatile for different applications.

• Encapsulated design protects against moisture and contaminants
• Interleaved copper windings enhance efficiency
• Compatible with standard mounting configurations

Product Highlights

The SBE series is known for its reliability and rugged construction suitable for all industrial environments.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78347253124

Technical Specifications

• Power Rating: 0.15 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Frequency Rating: 50/60 Hz
• Phase: 1
• Connection Type: Wire Lead
• Dimensions: 4.61 in L x 3.39 in W x 2.96 in H
• Insulation: 105 deg C
• Temperature Rating: 131 deg F
• Enclosure: IP20
• Series: SBE
• Includes: FB2X Secondary Fuse Holder
• Standards/Approvals: RoHS Compliant, cULus File No. E77014, UL 506, CSA C22.2 No. 66, ANSI C89.1
