Emerson Electric 4Q-950 4Q950 GEDNEY 1/2 90 SEALTITE FITTNG DC..

Product Description

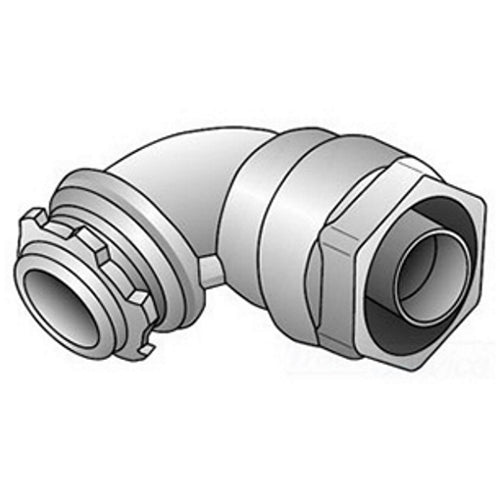

The Emerson Electric 4Q-950 conduit connector is designed for use with liquid-tight flexible metallic conduit. This connector provides a solution for concretetight, liquid-tight, oiltight, and raintight applications. It features a tapered threaded male NPT hub for secure connections.

• Suitable for wet locations
• Malleable iron construction
• Reusable ferrule with inspection windows

Product Highlights

This connector is compliant with ARRA, RoHS, UL, and CSA standards.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• MPN: 4Q-950

Technical Specifications

• Type: Concretetight Liquid Tight Oiltight Raintight
• Application: Ground and Seal Liquid Tight Flexible Metal Conduit to Boxes and Enclosures
• Trade Size: 1/2 inches
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Dimensions: 1-1/4 inches W
• Includes: Locknut and KO Sealing Ring
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 11853, CSA 009795, UL 514B, CSA C22.2 File No. 18, NEC 504.20
• Series: 4Q Series
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
