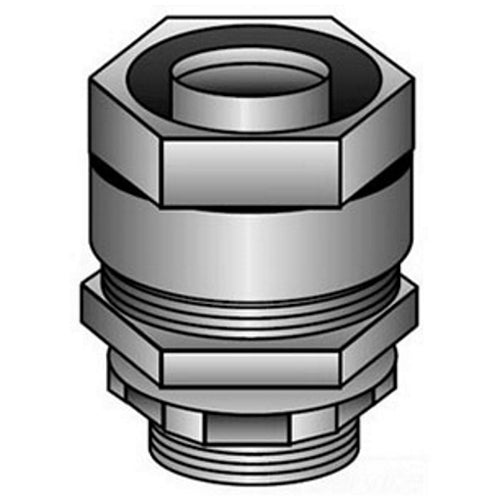

Emerson Electric 4Q-75 Concretetight Liquid Tight Oiltight Raintight Conduit Connector 3/4 IN

Product Description

Emerson Electric offers the 4Q-75 conduit connector designed for secure connections in challenging environments. This connector is suitable for use with liquid tight flexible metallic conduits. It features a straight design and is made from malleable iron with a zinc electroplated finish.

• Tapered threaded male NPT hub
• Compact design with small turning radius
• Inspection windows in ferrule

Product Highlights

This product provides significant safety features, including being suitable for wet locations and intrinsically safe installation. The long ferrule prevents pullout and ensures a tight fit with conduit.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312661725

Technical Specifications

• Application: Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures
• Dimensions: 1-5/8 inches H x 1-1/2 inches W
• Finish: Zinc Electroplated
• Includes: Locknut and KO Sealing Ring
• Material: Malleable Iron
• Series: 4Q Series
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 11853, CSA 009795
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Trade Size: 3/4 inches
• Type: Concretetight Liquid Tight Oiltight Raintight
