Emerson Electric 4Q-300 Concretetight Liquid Tight Oiltight Raintight Conduit Connector 3 in

Product Description

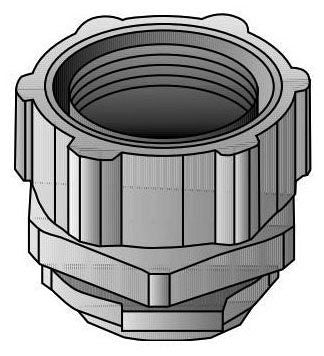

The Emerson Electric 4Q-300 is a Concretetight Liquid Tight Oiltight Raintight Conduit Connector designed for use with Liquid Tight Flexible Metallic Conduit. This connector is made of malleable iron and is zinc electroplated for durability. It measures three inches in trade size.

• Suitable for wet locations
• Includes locknut and KO sealing ring
• Inspection windows ensure full conduit engagement

Product Highlights

This conduit connector features a tapered threaded male NPT hub and is designed for tight bends and safe connections.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312661795

Technical Specifications

• Type: Concretetight Liquid Tight Oiltight Raintight
• Trade Size: 3 in
• Dimensions: 3-1/8 in H x 4-7/8 in W
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Series: 4Q Series
• Application: Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 11853, CSA 009795, UL 514B, CSA C22.2 File No. 18, Federal Specification W-F-406E, Class I, Div 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Div 1 Per NEC 502.4(A)(1)(e), Class II, Div 2 Per NEC 502.4(B)(2), Class III, Div 1 Per NEC 503.3(A)(2), Class III, Div 2 Per NEC 503.3(B), NEC 504.20
