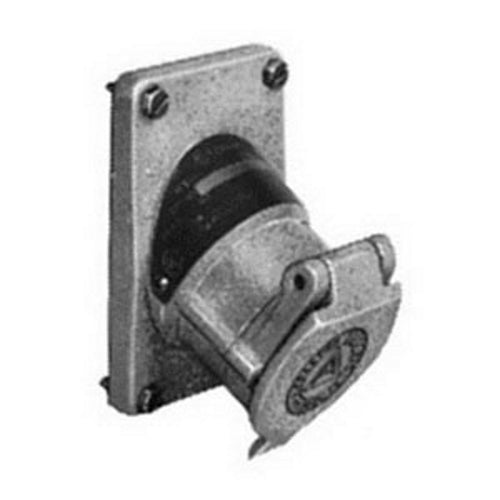

Emerson EFSR-2023 APP RECEPT. COVER ASSY 125 VAC 20 A MPN

Product Description

Emerson EFSR-2023 is a dust-ignitionproof explosionproof receptacle cover assembly. This component operates at one hundred twenty-five VAC with a rating of twenty amperes. It is designed with three poles and two wires to ensure compatibility with various settings.

• Factory sealed, no external seals required in most areas.
• Glass filled reinforced polyester insulating blocks.
• Compatible with both standard and U-Line explosionproof receptacles.

Product Highlights

Ideal for hazardous locations, the receptacle cover assembly ensures safety with recessed contacts and durable materials.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138128805

Technical Specifications

• Amperage Rating: 20 A
• Application: ECP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generators, Air Conditioners, Compressors, Pumps
• Dimensions: 4.63 inches H x 3 inches W x 3.19 inches D
• Horsepower: 1 hp
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R
• Number of Poles: 3
• Number of Wires: 2
• Standards/Approvals: Class I, Div 1 and 2 Groups C, D; Class II, Div 1 and 2 Groups F, G; UL and CSA Certified
• Type: Dust-Ignitionproof
• Voltage Rating: 125 VAC
