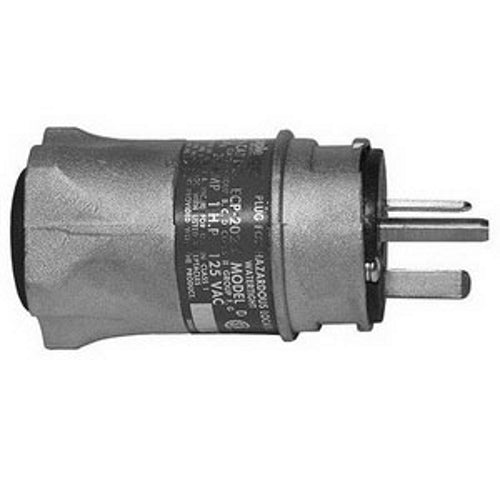

Emerson ECP-2023 APP 2W-3P 20A/125V EXP/PROOF PLUG

Product Description

The Emerson ECP-2023 is an explosion-proof and dust-ignition proof straight blade plug, designed for use in hazardous environments. This plug operates at 125 VAC and handles up to 20 A with three poles and two wires. It is compliant with NEMA 7BCD/9G standards and can accommodate cords with a diameter between 0.538 and 0.639 inches. Constructed from copper-free aluminum, this plug is suitable for refineries, petrochemical plants, and other areas where ignitable gases may be present.

• Explosion-proof and dust-ignition proof design
• Suitable for use in hazardous locations
• Fits standard and U-Line explosion-proof receptacles

Product Highlights

This plug features unique brass contacts that maintain constant pressure along the contact surface, ensuring superior electrical connectivity. The longer housing aids in grip and insertion, while a twist-lock mechanism secures the plug in place. The plug will produce an audible click to signal a secure connection.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138124925

Technical Specifications

• Amperage Rating: 20 A
• Application: For standard non-explosionproof receptacles and U-line explosion-proof receptacles
• Cord Diameter: 0.538 to 0.639 in
• Manufacturer Part Number: ECP-2023
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 7BCD/9G
• Number of Poles: 3
• Number of Wires: 2
• Standards/Approvals: CSA Certified|UL Listed for Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Group G and Coal Dust, Class III
• Voltage Rating: 125 VAC
