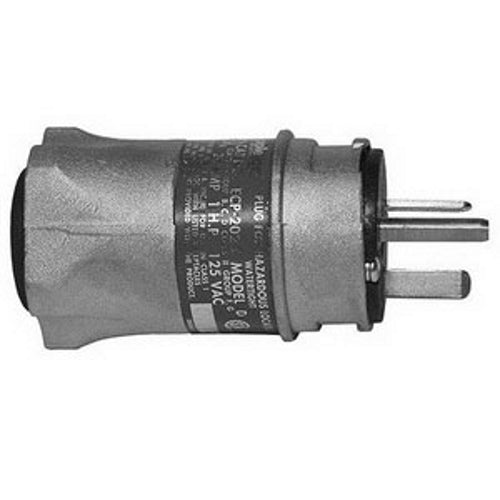

Emerson ECP-1523 APP 2W-3P 15A/125V EXP/PROOF PLUG

Product Description

Emerson ECP-1523 is an explosion-proof straight blade plug rated for 125 VAC and 15 A. It features three poles and two wires, making it suitable for various electrical applications. This plug is designed for use in hazardous environments like refineries and petrochemical plants where ignitable gases may be present. Its robust construction includes copper-free aluminum and a cord diameter range of zero point five three eight to zero point six three nine inches.

• Explosion-proof and dust-ignition proof
• Suitable for standard and explosion-proof receptacles
• Unique blade-type brass contacts for superior electrical connection

Product Highlights

This plug provides durability and safety in volatile locations. It features a twist-lock mechanism, ensuring secure connections and ease of use.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: ECP-1523

Technical Specifications

• Amperage Rating: 15 A
• Application: Standard non-explosionproof receptacles and U-line explosionproof receptacles
• Color: Black/White
• Cord Diameter: 0.538 to 0.639 in
• Dimensions: 2.78 in H x 1.75 in W
• NEMA Rating: NEMA 7BCD/9G
• Number of Poles: 3
• Number of Wires: 2
• Standards/Approvals: CSA Certified, UL Listed for Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Group G and Coal Dust, Class III
• Voltage Rating: 125 VAC
