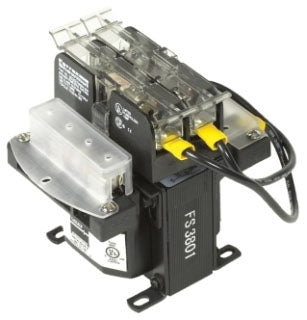

Emerson E075WB HEV 75VA I.C. SBE ENCAP. 240X480-120V XFMR W/FUSE HOLDERS

Product Description

The Emerson E075WB is a SolaHD control transformer with encapsulated design. This transformer operates with a primary voltage of two hundred forty to four hundred eighty VAC and a secondary voltage of one hundred twenty VAC. It has a power rating of zero point zero seventy-five kVA and functions at fifty or sixty hertz frequency. Designed for one phase with wire lead connections, it supports surface mounting. This transformer has a temperature insulation rating of one hundred five degrees Celsius and features an IP20 enclosure.

• Includes secondary fuse holder for Midget cartridge, size eleven thirty-seconds by one and one-half inches.
• Meets NEMA standard ST 1 and ANSI C89.1 for load inrush capability.
• Provides a robust construction suitable for industrial use.

Product Highlights

This encapsulated control transformer combines reliability with ease of installation, perfect for various industrial applications.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78347200242

Technical Specifications

• Type: Encapsulated Midget
• Phase: 1
• Power Rating: 0.075 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Frequency Rating: 50/60 Hz
• Insulation: 105 deg C
• Temperature Rating: 131 deg F
• Connection Type: Wire Lead
• Enclosure: IP20
• Dimensions: 3.99 in L x 3.01 in W x 4.18 in H
• Application: World Wide and Industrial Applications
• Standards/Approvals: RoHS Compliant, cULus File No. E77014, UL 506, CSA C22.2 No. 66, ANSI C89.1
