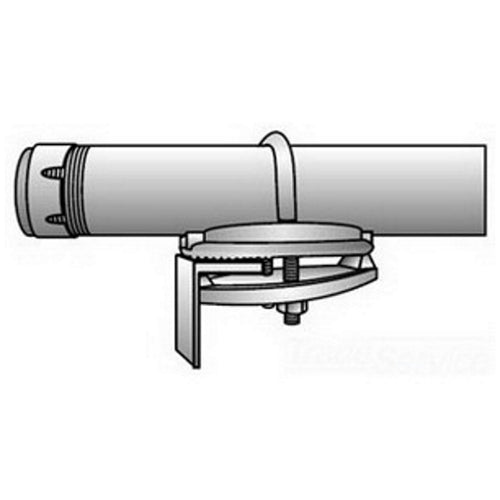

Emerson CTC-150 GEDNEY 1 1/2 Cable Tray Clamp

Product Description

The Emerson CTC-150 GEDNEY 1 1/2 Cable Tray Clamp is designed for connecting and grounding rigid conduit, IMC, or EMT to cable trays. This clamp secures and bonds metal conduit to the side rails of cable trays without the need for drilling or welding. The CTC series allows for easy attachment from various angles up to one hundred twenty degrees. This functionality enables efficient routing of large power or control cables.

• Mechanically galvanized finish for durability
• Made from malleable iron for strength
• Compatible with one and a half inch Rigid/EMT/IMC conduit

Product Highlights

The clamp features a three and one-half inch length and width, and a three eighths inch thickness. It is part of the CTC series and is ARRA compliant.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312609970

Technical Specifications

• Application: For connecting and grounding rigid conduit IMC/EMT to cable trays
• Finish: Mechanically galvanized
• Height: 3-1/2 inches
• Length: 3-1/2 inches
• Manufacturer Part Number: CTC-150
• Material: Malleable iron
• Series: CTC
• Standards/Approvals: ARRA Compliant, NEC 318-7 (b)(4) Bonding Requirements, UL File No. E24264, CSA 009795, UL 467, CSA C22.2 No. 18
• Suitable For Use With: 1-1/2 inch Rigid/EMT/IMC Conduit
• Width: 3-7/8 inches
