Emerson CTC-0507 1/2-3/4 Cable Tray Clamp

Product Description

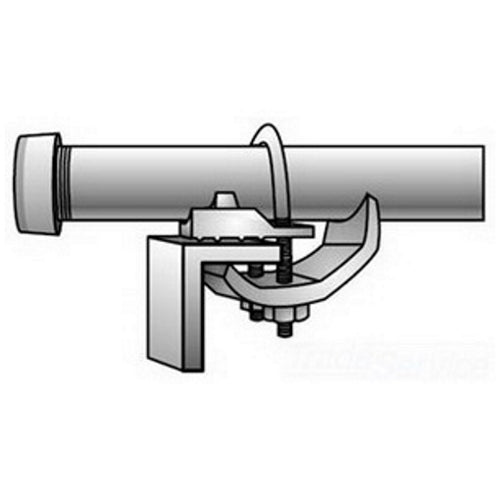

The Emerson CTC-0507 Cable Tray Clamp is designed for connecting and grounding rigid conduit, IMC, or EMT to cable trays. This clamp secures and bonds metal conduit to the side rails of steel or aluminum cable trays without the need for drilling or welding. It allows conduit to attach from various angles, simplifying the routing of large power or control cables.

• Fast installation for quick setups
• Low cost solution for cable management
• Excellent grounding continuity for reliable connections

Product Highlights

The CTC-0507 is made from malleable iron with a mechanically galvanized finish, ensuring strength and durability in various environments.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: CTC-0507

Technical Specifications

• Application: For connecting and grounding rigid conduit IMC/EMT to cable trays
• Material: Malleable Iron
• Series: CTC
• Finish: Mechanically Galvanized
• Height: 2-1/2 inches
• Length: 2-1/4 inches
• Width: 2-1/4 inches
• Suitable For Use With: 1/2 to 3/4 inches Rigid/EMT/IMC Conduit
• Standards/Approvals: ARRA Compliant, NEC 318-7 (b)(4) Bonding Requirements, UL File No. E24264, CSA 009795, UL 467, CSA C22.2 No. 18
