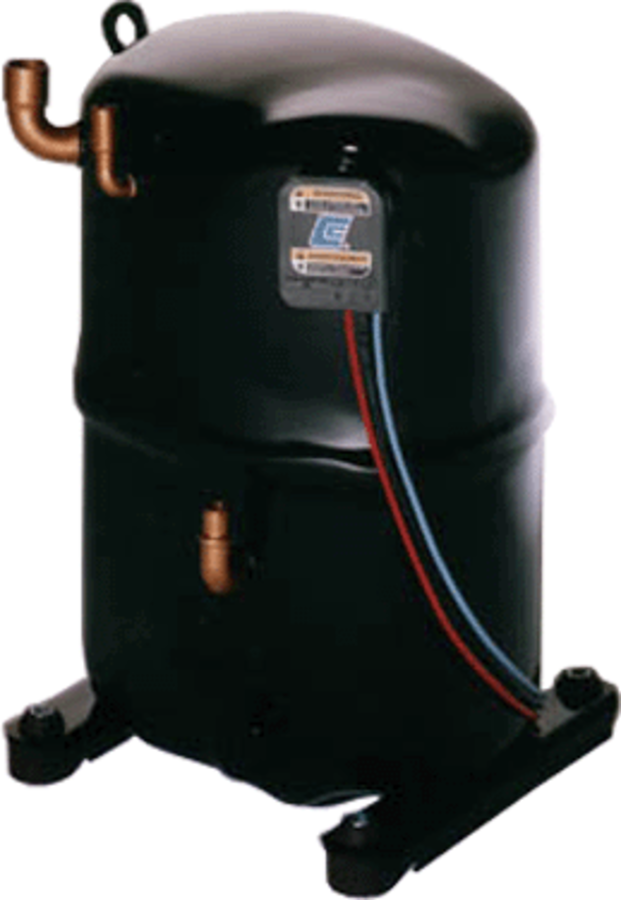

Emerson CR28K6E-PFV-875 Compressor 208-230/1/60 1/2 inches x 3/4 inches Hermetic R22 Copelaweld

Product Description

The EMERSON CR28K6E-PFV-875 is a hermetic compressor designed for refrigeration applications. It operates at 208-230V, 60Hz, and features a 1/2" liquid line and 3/4" suction line. This compressor uses R22/R407C refrigerant and is part of the Copelaweld series. It is suitable for high-temperature air conditioners, packaged systems, geothermal, and heat pump applications.

• Hermetic compressor designed for refrigeration applications
• Operates at 208-230V, 60Hz with single phase
• Features 1/2" liquid line and 3/4" suction line

Product Highlights

The EMERSON CR28K6E-PFV-875 is a hermetic compressor for refrigeration using R22/R407C refrigerant. It is designed for various applications, including air conditioning and heat pumps.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CR28K6E-PFV-875

Technical Specifications

• Type: Hermetic
• Phase: Single
• Width: 9.655"
• Height: 13.56"
• Length: 10.228"
• Series: Copelaweld
• Voltage: 208/230V
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R22/R407C
• Liquid Line Size: 1/2"
• Suction Line Size: 3/4"
• Mounting Dimensions: 7.5" x 7.5"
• COOLING EFFICIENCY: 10.7 EER
• CURRENT RATING: 15.3 AMP (LOAD RATED)
• CAPACITY: 28000 BTU/HOUR
• REFRIGERANT TYPE: R-22
• OIL TYPE: POLYOLESTER
• MOTOR TYPE: PERMANENT SPLIT CAPACITOR
• MOTOR PROTECTION: INTERNAL INHERENT
• Amperage Rating: 11.8 A
• BTU Rating: 28000 Btu/hr
• Compressor Oil: POE
• EER Rating: 10.7 to 18.05
• Flow Rate: 380 to 451 lb/hr
• Power Rating: 2440 W, 2-1/4 hp
• Speed Rating: 3500 rpm
• Temperature Rating: 45 deg F Evaporator, 100 to 130 deg F Condensing, 65 deg F Return Gas, 85 to 115 deg F Liquid
• Tonnage: 2.25 ton
