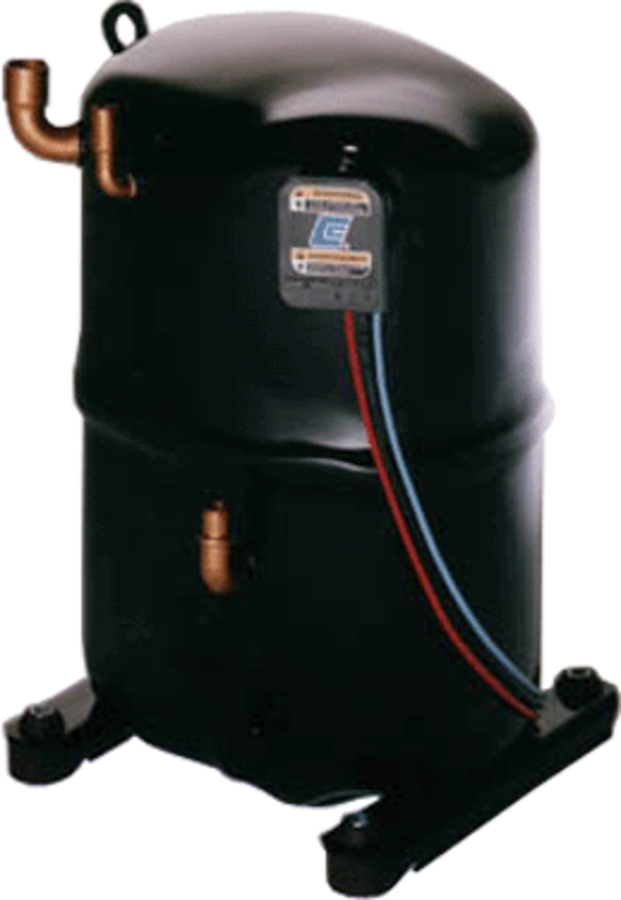

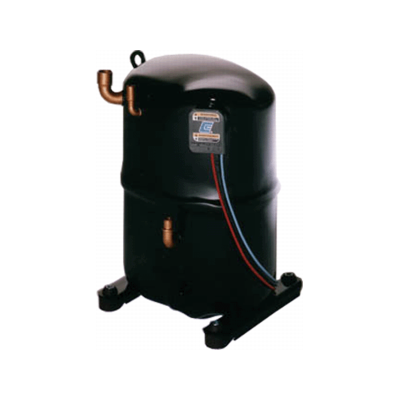

Emerson CR24K6E-PFV-875 Compressor, 208-230/1/60 1/2 inches x 5/8 inches Hermetic R22 Copelaweld

Product Description

The EMERSON CR24K6E-PFV-875 is a hermetic compressor designed for refrigeration applications. This Copelaweld series compressor operates on 208/230V single-phase power at 60Hz. It features a 1/2" liquid line size and a 5/8" suction line size. The compressor is suitable for use with R22 and R407C refrigerants.

• Hermetic compressor design
• Operates on 208/230V single-phase power
• Designed for refrigeration applications

Product Highlights

The EMERSON CR24K6E-PFV-875 is a reliable hermetic compressor for refrigeration, utilizing R22 and R407C refrigerants.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CR24K6E-PFV-875
• Country of Origin: United States

Technical Specifications

• Type: Hermetic
• Phase: Single
• Width: 9.65"
• Height: 13.44"
• Length: 10.23"
• Series: Copelaweld
• Voltage: 208/230V
• Body Type: CR
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R22/R407C
• Liquid Line Size: 1/2"
• Suction Line Size: 5/8"
• Mounting Dimensions: 7.5" x 7.5"
• BTU Rating: 24000 Btu/hr
• Tonnage: 2 ton
• Amperage Rating: 17.4 A Minimum Circuit, 61 A Locked Rotor, 9.5 A, 12.4 A Rated Load
• Compressor Oil: POE
• Refrigerant Type: R-22, R-407C
• Discharge Line Size: 1/2 in Stub
• Flow Rate: 329 to 391 lb/hr
• CFM Rating: 5.47 cfm
• Power Rating: 2140 W
• Speed Rating: 3500 rpm
• Sound Level: 72 to 77 dBA
• EER Rating: 10.55 to 17.8
• Temperature Rating: 45 deg F Evaporator, 100 to 130 deg F Condensing, 65 deg F Return Gas, 85 to 115 deg F Liquid, 95 deg F Ambient
• Compressor Type: Scroll
