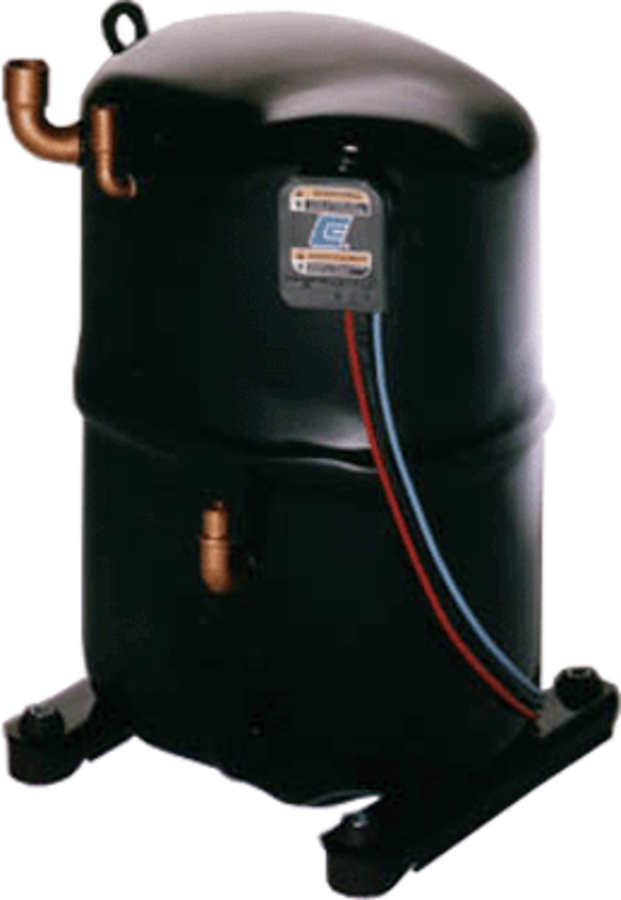

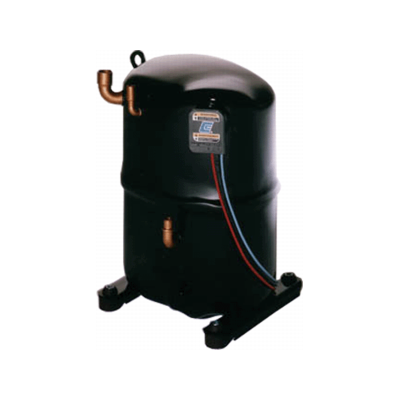

Emerson CR16K6E-PFV-875 Compressor 208-230V 1-Phase

Product Description

The EMERSON CR16K6E-PFV-875 is a hermetic compressor designed for refrigeration applications and compatible with R22 and R407C refrigerants. It operates on 208-230V single-phase 60Hz power and features a 1/2" liquid line and 3/4" suction line. This reciprocating compressor has a capacity of 16,000 BTU/hr.

• Hermetic reciprocating compressor
• Operates on 208-230V single-phase 60Hz power
• Compatible with R22 and R407C refrigerants

Product Highlights

The EMERSON CR16K6E-PFV-875 is ideal for refrigeration and air conditioning applications, offering efficient and reliable performance.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CR16K6E-PFV-875

Technical Specifications

• Type: Hermetic
• Phase: Single
• Voltage: 208/230V
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R22/R407C
• Liquid Line Size: 1/2"
• Suction Line Size: 3/4"
• Mounting Dimensions: 7.5" x 7.5"
• Series: Copelaweld
• Body Type: CR
• Width: 9.65"
• Height: 13.19"
• Length: 10.23"
• Refrigerant Rating: R22, R407C
• BTU Rating: 16000 Btu/hr
• Connection Size: 3/4" x 1/2"
• Compressor Connection: Stub
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Amperage Rating: 13.4 A Minimum Circuit, 49 A Locked Rotor, 6.75 A, 9.6 A Rated Load
• EER Rating: 10.15
• Flow Rate: 220 - 272 lb/hr
• Power Rating: 1495 W, 1-21/64 hp
• Refrigerant Type: R-22, R-407C
• Sound Level: 70 dBA
• Temperature Rating: 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 85-115 deg F Liquid, 95 deg F Ambient
• Tonnage: 1.5 ton
• Voltage Rating: 208 - 230 VAC
• Compressor Oil: POE
