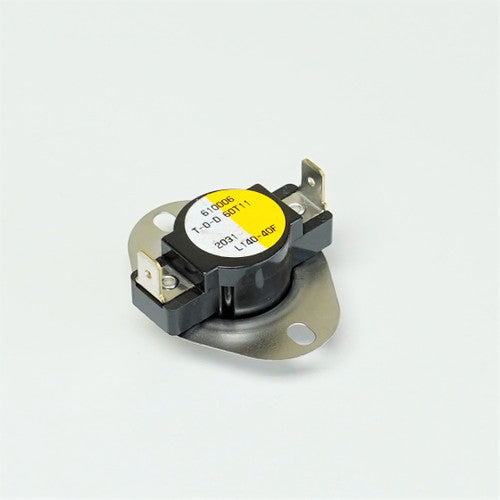

EMERSON CLIMATE TECHNOLOGIES - WHITE-RODGERS 3L01-140 120/240/277 v ac 140 Degrees F Cut-Out/100 Degrees F Cut-In SPST Open on Rise Snap Disc Auto Reset Limit Control

Product Description

The EMERSON CLIMATE TECHNOLOGIES - WHITE-RODGERS 3L01-140 is a limit control device designed for HVAC applications. It functions with an automatic reset feature for reliable performance. The limit control is suitable for use in fans, blowers, and high limit cut-outs.

• 3/4 inch automatic reset snap disc thermostat
• Includes stainless steel mounting brackets
• Features 1/4 inch quick connect terminals

Product Highlights

This limit control offers an aluminum disc cup, ensuring durability and efficiency in various HVAC systems.

Product Information

Standard Information

• Brand: EMERSON CLIMATE TECHNOLOGIES - WHITE-RODGERS
• MPN: 3L01-140

Technical Specifications

• Cut-Out Temperature: 140 Degrees F
• Cut-In Temperature: 100 Degrees F
• Voltage Rating: 120/240/277 V AC
• Style: SPST Open on Rise
• Mounting Type: Loose ring
• Connection Type: Quick connect
