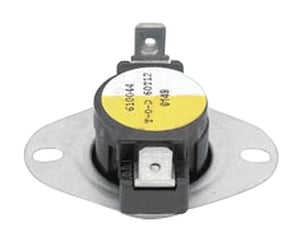

Emerson Climate Technologies - White-Rodgers 3F01-140 +140 Degrees F Cut-In/+120 Degrees F Cut-Out 120/240/277 v ac SPST Snap Disc Fan Control

Product Description

The Emerson Climate Technologies - White-Rodgers 3F01-140 is a snap disc fan control designed to operate within a temperature range suitable for HVAC systems. This product features a cut-in temperature of +140 degrees Fahrenheit and a cut-out temperature of +120 degrees Fahrenheit, making it ideal for various fan and blower applications.

• Loose ring, stainless steel mounting brackets
• 1/4 inch quick connect terminals
• Designed for quick on-job replacement

Product Highlights

The 3F01-140 is constructed with an aluminum disc cup that ensures durability and efficiency. It is easy to install, and features mounting holes that fit standard three-quarter inch snap discs.

Product Information

Standard Information

• Brand: Emerson Climate Technologies - White-Rodgers
• MPN: 3F01-140

Technical Specifications

• Cut-In Temperature: +140 degrees Fahrenheit
• Cut-Out Temperature: +120 degrees Fahrenheit
• Voltage: 120/240/277 VAC
• Type: SPST Snap Disc
• Maximum Ambient Temperature: 350 degrees Fahrenheit
• Construction: Aluminum disc cup
• Mounting: Stainless steel with loose ring
• Connection Type: 1/4 inch quick connect terminals
