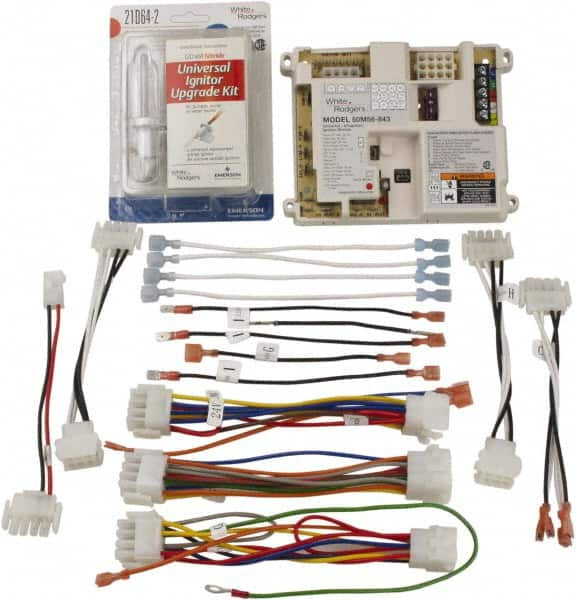

Emerson Climate Technologies 50M56U-843 Universal Single Stage HSI Integrated Furnace Control Kit with Module 25VAC, 0.45A

Product Description

The Emerson Climate Technologies 50M56U-843 is a universal single-stage HSI integrated furnace control kit designed to optimize heating performance. Operating at twenty-five volts alternating current (25VAC) and a current of zero point forty-five amperes (0.45A), it is suitable for both residential and commercial heating systems.

• Microprocessor controls gas burners, inducer, and fan effectively.
• Three fan speed options for cooling, low heat, and high heat.
• Features color-coded thermostat connections for straightforward installation.

Product Highlights

This control kit includes diagnostic features for efficient troubleshooting and maintenance.

Product Information

Standard Information

• Brand: Emerson Climate Technologies
• Type: Universal

Technical Specifications

• MPN: 50M56U-843
• Number of Heat Stages: 1
• Number of Cool Stages: 1
• Terminal Designation: W, G, R, Y, C
• Voltage Rating: 25VAC
• Mounting: Surface Mount Multipoise
• Height: 7 inches
• Width: 5.25 inches
• Depth: 1.25 inches
• For Use With: Residential, Commercial Heating Equipment
• Frequency: 50/60 Hz
• Includes: Ignitor and Wiring Harness
• Item Type: Ignition Controls
