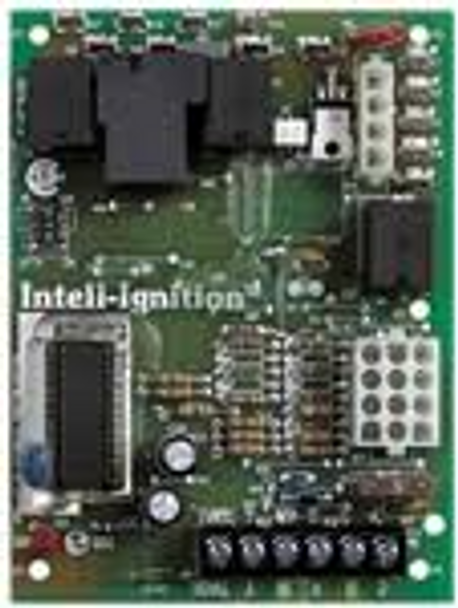

Emerson Climate Technologies 50A65-5165 Single-Stage HSI Integrated Furnace Control Kit

Product Description

The Emerson Climate Technologies 50A65-5165 is an automatic gas interrupted ignition control designed to manage the operation of gas burners, inducers, and fans. This control employs a microprocessor that continually monitors and adjusts system operations to ensure efficient performance.

• Compatible with Trane OEM systems.
• Direct replacements for major brand controls.
• Equipped with diagnostic LED indicators for easy installation and troubleshooting.

Product Highlights

This control kit offers essential functionalities for managing gas flow and ignition processes in HVAC systems.

Product Information

Standard Information

• Brand: Emerson Climate Technologies - White-Rodgers
• MPN: 50A65-5165

Technical Specifications

• Voltage Outputs: 120 V air cleaner and humidifier
• Fuse Style: Replaceable automotive style fuse
• Input Current: 0.45 amp at 30 V AC maximum
• Relay Ratings: 1.5 amp at 25 V AC, 2 amp at 120 V AC for ignitor
• Inducer Relay Ratings: 2.2 amp FLA and 3.5 amp LRA at 120 V AC
• Circulator Relay Ratings: 14.5 amp FLA and 25 amp LRA at 120 V AC
• Ignitor Voltage: 80 V
• Features: Flash code diagnostics, twinning connection, safety timing options
