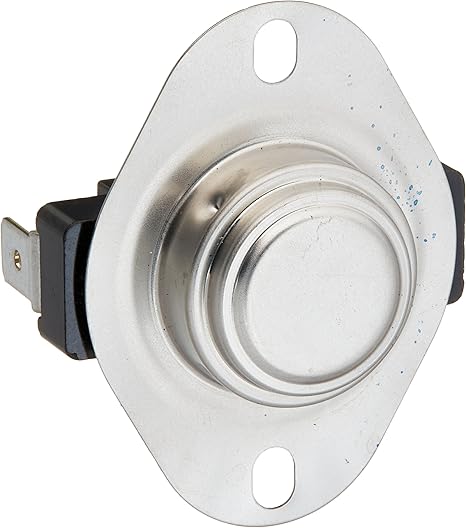

Emerson Climate Technologies 3L01-190 Snap Disc Limit Control 190 Watts

Product Description

The Emerson Climate Technologies 3L01-190 snap disc limit control is vital for high limit safety regulation in HVAC systems. This device operates with an open-on-rise function and is mounted using a SPST flanged airstream design. It includes necessary tab-to-screw terminal adapters for easy installation. The control manages temperatures with a cut-in at one hundred fifty degrees Fahrenheit and cut-out at one hundred ninety degrees Fahrenheit, making it suitable for various appliance and HVAC applications.

• Designed for high limit safety control
• Open-on-rise control for temperature regulation
• Includes mounting hardware for easy installation

Product Highlights

This snap disc control is essential for maintaining safe operating temperatures in HVAC systems and appliances.

Product Information

Standard Information

• Brand: Emerson
• Manufacturer: White-Rodgers

Technical Specifications

• Model Name: 3L01-190
• Wattage: 190 watts
• Voltage: 277 Volts
• Cut In Temperature: 150F
• Cut Out Temperature: 190F
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC, 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC
• Size: 3/4 Inch Disc
• Switch Type: SPST, Close on Rise
• UPC: 786710001925
