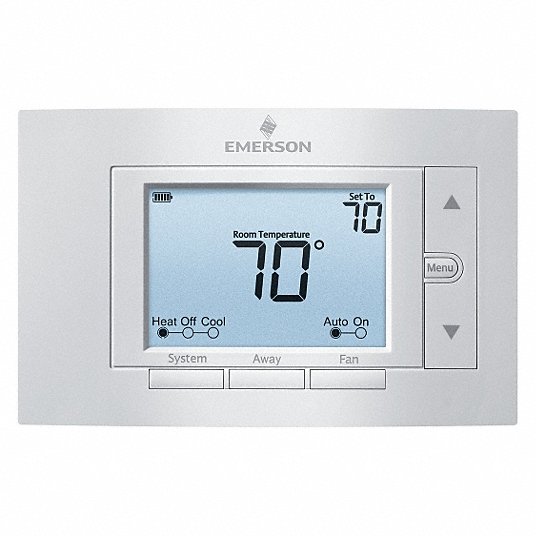

Emerson Climate Technologies 1F85U-22NP Non-Programmable Thermostat

Product Description

The Emerson Climate Technologies 1F85U-22NP is a non-programmable digital thermostat designed for easy operation. This thermostat features a customizable inchAwayinch button and a bright, backlit display. It is compatible with both 24-Volt and Millivolt systems. The device includes a system switch that allows users to select between heat, off, cool, auto, and auxiliary/emergency settings.

• Clear display for low-light conditions

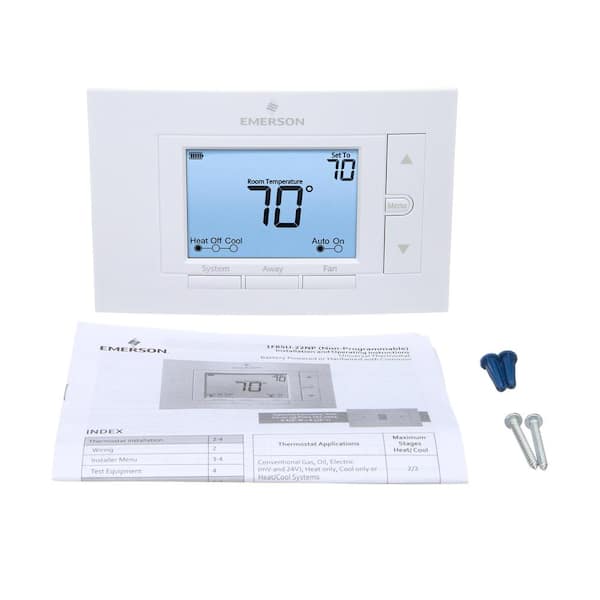

• Easy installation with built-in level indicator
• Includes keypad lockout and set-point temperature limits

Product Highlights

This thermostat is practical for residential use, providing flexibility and control over heating and cooling. Its user-friendly features ensure a straightforward setup and operation.

Product Information

Standard Information

• Brand: Emerson

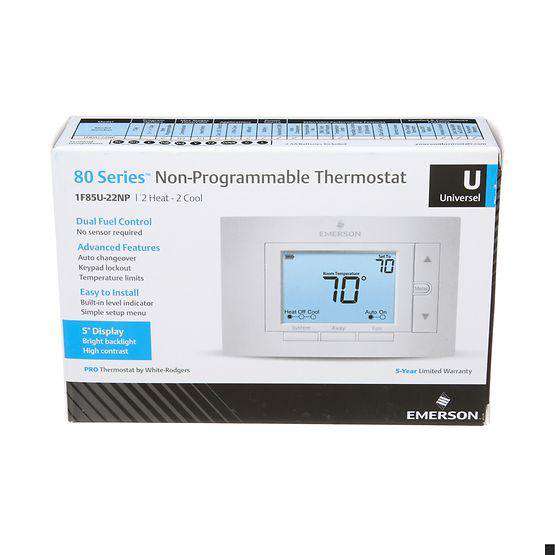

• Model Name: 80 Series

Technical Specifications

• Special Feature: Auto Changeover, Lockable, Low Voltage, Temperature Display
• Control Type: Button Control
• Power Source: Battery, Hardwire
• Voltage: 20-30 Vac
• Display Type: Digital
• Screen Size: 5 Inches
• Temperature Control Type: Manual
• Compatible System Type: Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pumps with Aux, Millivolt
• Minimum Control Temperature: 45 °F
• Maximum Control Temperature: 99 °F
• Overall Dimensions: 6 inches width, 1.13 inches depth, 3.75 inches height
• Maximum Operating Temperature: 150 °F
• Number of Heating Stages: 2
• Number of Cooling Stages: 2
• Amperage: 2.5 A
