Emerson CG90-1250 Liquidtight Strain Relief Connector 1/2 in Trade 1/8 to 1/4 in Cable Openings

Product Description

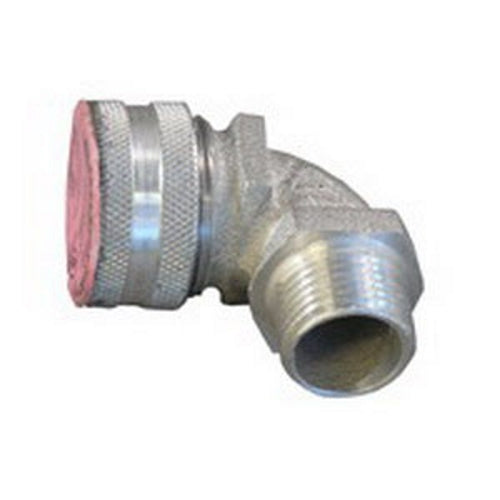

The Emerson CG90-1250 is a liquidtight strain relief connector designed for use with cables ranging from one-eighth inch to one-quarter inch. This connector is ideal for applications requiring a secure and protective termination. The connector is made of cast aluminum, ensuring durability and resistance to various environmental conditions.

• Suitable for flexible type neoprene, hypalon, and PVC jacketed power cables
• Thread connection provides secure installation
• Designed for wet or dry locations

Product Highlights

Offers reliable strain relief while protecting internal wiring from external stress and moisture.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138118925

Technical Specifications

• Application: Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locations
• Cable Openings: 1/8 to 1/4 in
• Color: Blue
• Connection Type: Thread
• Dimensions: 1-1/4 in OD
• Manufacturer Part Number: CG90-1250
• Material: Cast Aluminum
• Standards/Approvals: Class I, Div 2, Class II, Div 1, 2, Class III|UL 514B File No. E14817 Listed|CSA C22.2 No. 18.3|CSA 065178 Certified
• Trade Size: 1/2 in
