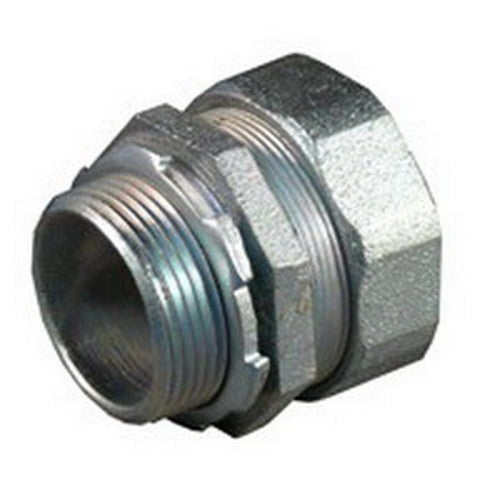

Emerson CG-3775S CG Series Strain Relief Straight Cord Connector 3/4 in 3/8 to 1/2 in Cable Openings

Product Description

The Emerson CG-3775S is a strain relief straight cord connector designed for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. It features aluminum or machined steel construction for durability and reliable performance in wet or dry locations. Ideal for applications requiring a liquidtight termination, this connector helps seal electrical connections against dust, dirt, and moisture.

• Color coded identification label indicates catalog number and cable diameter range.
• Neoprene sealing grommet provides strain relief while protecting internal wiring.
• Steel or Teflon washer reduces friction and prevents grommet distortion.

Product Highlights

This product is part of the CG Series and is suitable for applications where strain relief is critical.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Trade Size: 3/4 in

Technical Specifications

• Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
• Cable Openings: 3/8 to 1/2 in
• Color: Purple Label
• Connection Type: Threaded Hub
• Dimensions: 1-1/4 in W
• Finish: Natural
• Manufacturer Part Number: CG-3775S
• Material: Machined Steel
• Series: CG Series
• Standards/Approvals: CSA C22.2 File No. 18.3, CSA 065178, UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III, UL 514B File No. E14817 Listed
