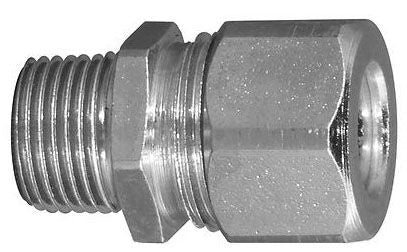

Emerson CG-3150S CG3150S APP 1/2 WT CBL CONN STEEL 5/16 TO 7/16 IN

Product Description

Emerson CG-3150S is a strain relief straight cord connector designed for flexible cord applications. This connector supports cable openings that range from five sixteenths to seven sixteenths inches. It is constructed of machined steel with a threaded hub for secure installation.

• Designed for neoprene, hypalon, and PVC jacketed cables
• Offers strain relief while protecting internal wiring
• Compatible with liquids and protects connections from moisture

Product Highlights

The CG3150S is ideal for use in both wet and dry locations, providing a solid seal against dust, dirt, and water.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138144932

Technical Specifications

• Application: For flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• Cable Openings: 5/16 to 7/16 in
• Color: Yellow Label
• Connection Type: Threaded Hub
• Dimensions: 0.94 in W
• Finish: Natural
• Manufacturer Part Number: CG-3150S
• Material: Machined Steel
• Series: CG Series
• Standards/Approvals: CSA C22.2 File No.18.3 | CSA 065178 | UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III | UL 514B File No. E14817 Listed
• Trade Size: 1/2 in
• Type: Strain Relief
