Emerson CF06K6E-PFV-945 Compressor 208-230V 1-Phase 06,000Btu R-404A

Product Description

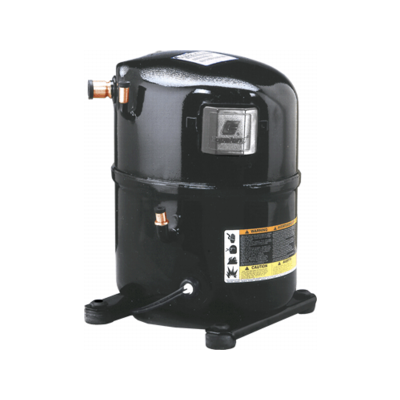

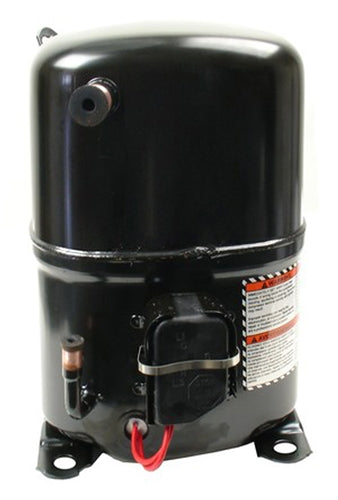

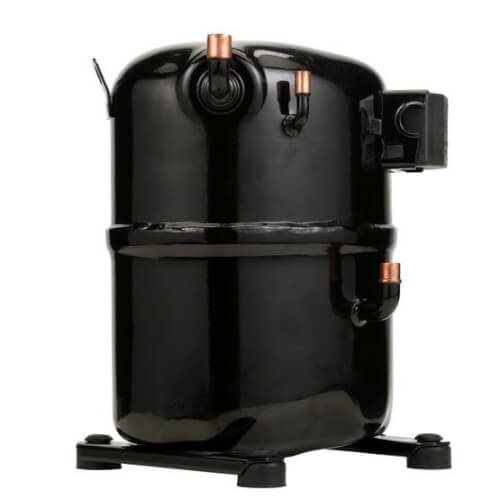

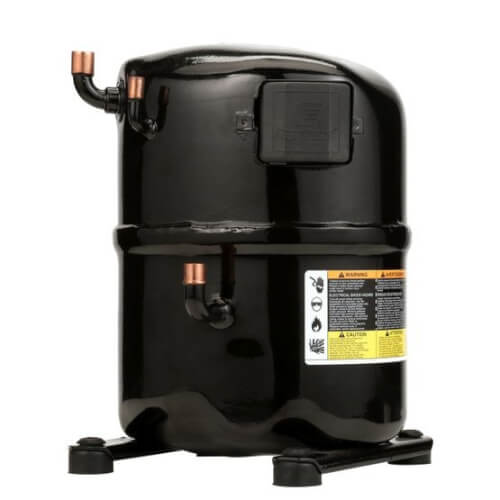

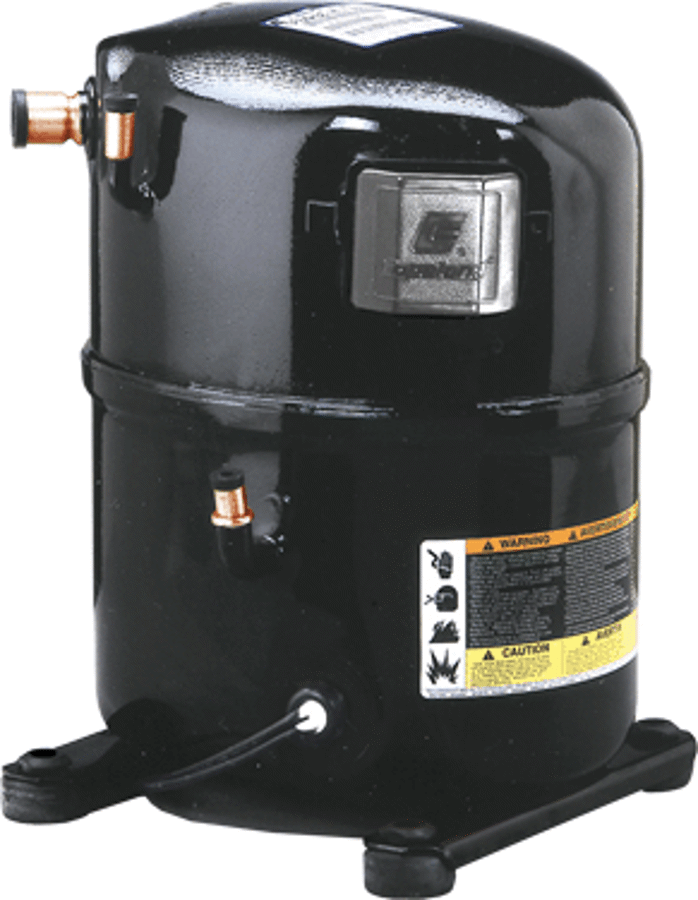

The EMERSON CF06K6E-PFV-945 is a Copeland hermetic compressor approved for R-22, R-404A/507, and R-134A refrigerants. Versatile with a wide choice of operating ranges, this compressor is suitable for refrigeration needs. It features a 1-phase motor and is designed for 208-230V power, delivering 6,000 BTUs. The hermetic design ensures reliability and quiet operation.

• Approved for R-22, R-404A/507, and R-134A refrigerants
• Suitable for a wide range of refrigeration applications
• Reliable hermetic design for quiet operation

Product Highlights

The EMERSON CF06K6E-PFV-945 is a reliable Copeland hermetic compressor with a 1-phase motor, designed for various refrigeration applications.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CF06K6E-PFV-945
• Country of Origin: MEX

Technical Specifications

• Phase: 1-phase
• Height: 13.31"
• Length: 10.23"
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R-404A
• Series-Brand: Copeland
• Liquid Line Size: 1/2"
• Mounting Dimensions: 7.50" x 7.50" x 13.69"
• Cooling Efficiency (EER): 3.8
• Voltage@Hz: 200@50, 208/230@60
• Capacity Range (BTU): 3900-6840
• Manufacturer: Copeland
• Product Type: Compressor
• BTUs: 6000
• BTU OUTPUT: 5430
• RATED LOAD AMPS: 11.4
• OIL TYPE: POE
• Electrical: 208/230-1-60
• Suction Line Size: 3/4"
• Temperature Rating: UL Low
• Voltage: 208/230V
• Width: 9.655"
