Emerson C50A APP 1/2 ALUM C-UNILET 85AS

Product Description

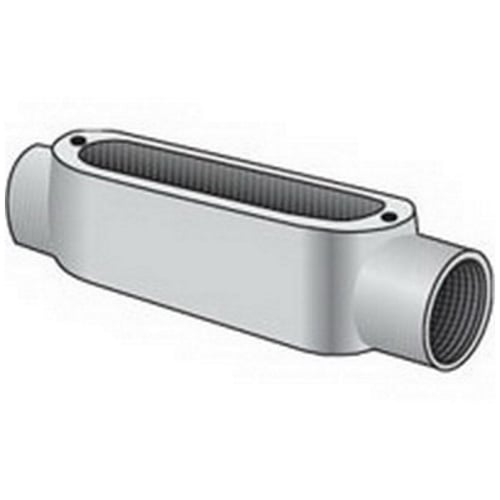

Emerson Electric offers the C50A APP conduit outlet body designed for use in electrical systems. This Type-C outlet body features a half-inch hub and has two hubs with a four cubic inch capacity. It is made from pressure cast aluminum and finished with epoxy powder coating for durability. The dimensions are four point seventy-five inches long by one point thirty-one inches wide by one point thirty-eight inches high.

• Type-C conduit outlet body
• Pressure cast aluminum for corrosion resistance
• NEMA FB-1 rated enclosure

Product Highlights

This conduit body is ideal for connecting and changing the direction of conduit runs. It also allows for easy access to conductors for maintenance and splicing.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138116405

Technical Specifications

• Application: For Rigid Steel/Aluminum, IMC and EMT Conduit
• Connection Type: Tapered FNPT
• Dimensions: 4.75 in L x 1.31 in W x 1.38 in H
• Enclosure: NEMA FB-1
• Finish: Epoxy Powder Coated
• Hub Size: 1/2 in
• Manufacturer Part Number: C50-A
• Material: Pressure Cast Aluminum
• Mounting Type: Surface
• Number of Hubs: 2
• Standards/Approvals: UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183
• Type: Type-C
