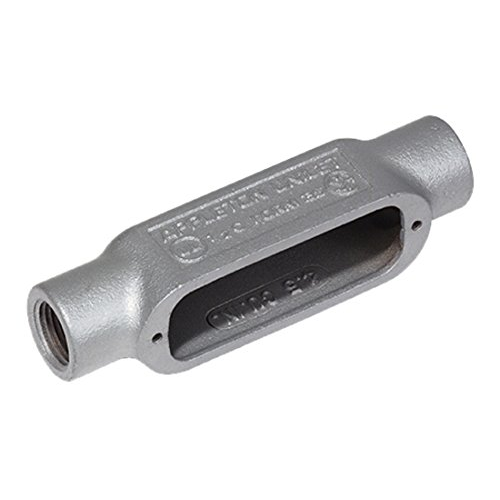

Emerson C150A APP 1-1/2IN ALUMINUM C UNILET

Product Description

The Emerson C150A is an Appleton® UNILETS™ type C conduit outlet body. It has a hub size of one and a half inches and two hubs for ease of installation. The product features a capacity of thirty-five cubic inches, making it suitable for a variety of electrical installations. The design adheres to NEMA FB-1 enclosure standards and offers a tapered FNPT connection for secure fittings.

• Smooth, rounded bushing to protect wire insulation
• Lightweight aluminum for easier handling and installation
• Threaded style ensures rain-tight connections when used with gaskets

Product Highlights

This conduit outlet body is ideal for connecting and changing the direction of conduit runs. It allows for access to conductors for maintenance and splicing.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Model Number: C150A

Technical Specifications

• Application: For Rigid Steel/Aluminum, IMC and EMT Conduit
• Connection Type: Tapered FNPT
• Dimensions: Eight point five six inches long x two point three eight inches wide x two point seven five inches high
• Enclosure: NEMA FB-1
• Finish: Epoxy Powder Coated
• Hub Size: One and a half inches
• Material: Pressure Cast Aluminum
• Mounting Type: Surface
• Number of Hubs: Two
• Standards/Approvals: UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183
• Type: Type-C
