Emerson C-550 APP 3/8 DC SET SCR CONN

Product Description

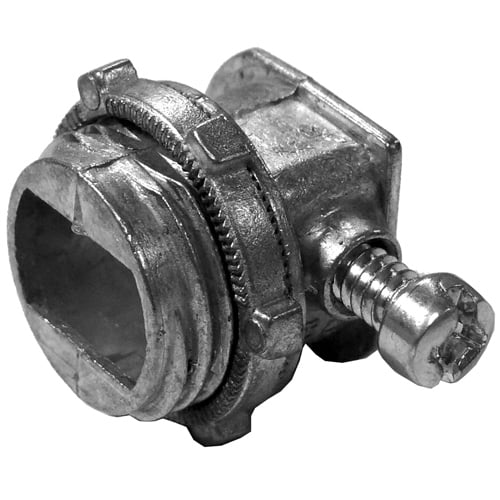

The Emerson C-550 is a two-screw service entrance cable connector designed for use with 3/8 inch knockouts. It accommodates conductor sizes from fourteen to ten AWG. This connector is made from die cast zinc, ensuring durability and reliability in various applications.

• Compatible with fourteen to two and ten to two AWG armored cable
• Includes locknut for secure installation
• Suitable for metal clad cable use

Product Highlights

This connector is ideal for electricians and installers needing a robust solution for service entrance connections.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 68785510550

Technical Specifications

• Type: 2-Screw
• Application: Used to terminate regular wall steel or aluminum flexible conduit to a 1/2 inch knockout in a dry box or enclosure
• Conductor Size: 14/2 to 10/2 AWG
• Dimensions: 0.78 inches wide
• Includes: Locknut
• Knockout Size: 3/8 inch
• Material: Die Cast Zinc
• Standards/Approvals: UL 514B, CSA C22.2 No. 18, Federal Specification W-F-406D
• Suitable For Use With: 14 to 2/10 to 2 AWG armored cable, 14 to 2/10 to 3 AWG metal clad cable
• Manufacturer Part Number: C-550
