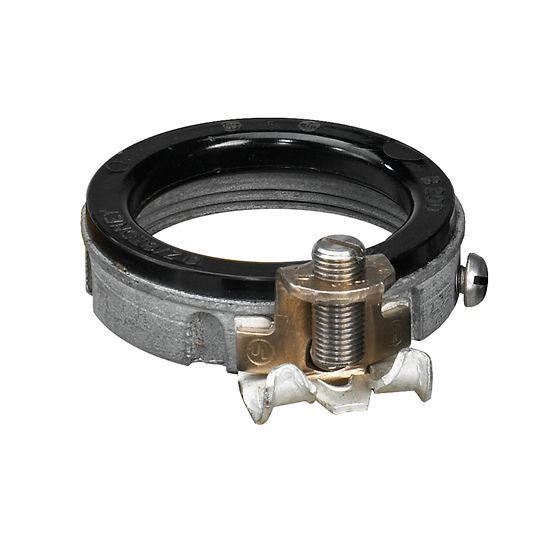

Emerson BLG-1204 BLG-1204 GEDNEY 1-1/4 IN INSUL GNDG BSHG

Product Description

O-Z/Gedney offers the BLG-1204 grounding bushing designed for use with 14 to 4 AWG AC cable sizes. The trade size is 1-1/4 inches. This product is made from malleable iron and features a zinc plated finish for durability.

• Designed for threaded rigid conduit, IMC, and EMT conduit.
• Insulated to protect conductors.
• 150 degree Celsius temperature rating.

Product Highlights

This grounding bushing provides a reliable connection for grounded systems, ensuring that insulated conductors are protected from abrasion.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312604218

Technical Specifications

• AC Cable Size: 14 to 4 AWG
• Application: For threaded rigid conduit, IMC and EMT conduit
• Dimensions: 2 inches Diameter x 3/4 inch Width
• Finish: Zinc Plated
• Insulation Type: Insulated
• Material: Malleable Iron
• Standards/Approvals: ARRA Compliant, CSA 015978, CSA 467 C22.2 No.41, Federal Specification W-F-408E, NEMA FB-1, UL 514B E24264
• Temperature Rating: 150 degrees Celsius
• Trade Size: 1-1/4 inches
• Type: Type BLG
