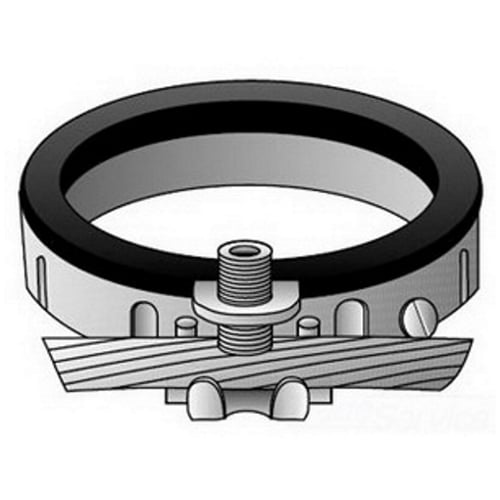

Emerson BLG-0704 Type BLG Grounding Bushing 3/4 In

Product Description

The Emerson BLG-0704 is a Type BLG grounding bushing designed for use with 14 to 4 AWG AC cable sizes. This stainless steel bushing fits a trade size of three-fourth inches and features a zinc plated finish for durability. The grounding bushing provides essential protection for insulated conductors during installation by preventing abrasion and ensuring a smooth grounding connection.

• Compatible with threaded rigid conduit, IMC, and EMT conduit.
• Phenolic insulation rated at 150 degrees Celsius.
• Spring-action design maintains a strong contact with the grounding conductor.

Product Highlights

This grounding bushing allows easy insertion of grounding conductors and provides a voltage gradient between line conductors and ground to protect against electrical stress.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312604206

Technical Specifications

• AC Cable Size: 14 to 4 AWG
• Application: For threaded rigid conduit, IMC, and EMT conduit
• Dimensions: 1-3/8 in Dia x 5/8 in W
• Finish: Zinc Plated
• Insulated Non Insulated: Insulated
• Manufacturer Part Number: BLG-0704
• Material: Steel
• Standards/Approvals: CSA 015978, 467 | CSA C22.2 No.41 | Federal Specification W-F-408E | NEMA FB-1 | UL 514B | UL E-24264
• Temperature Rating: 150 degrees Celsius
• Trade Size: 3/4 in
• Type: Type BLG
