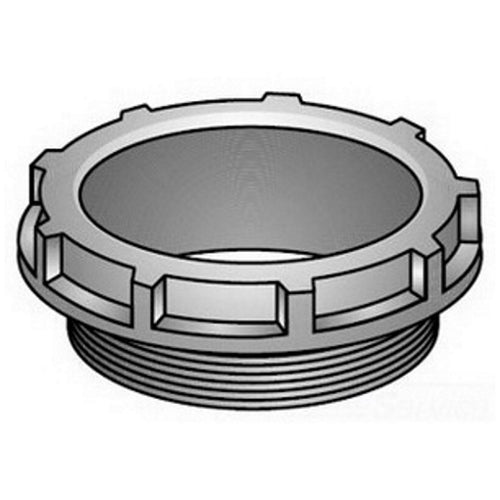

Emerson BB-250 Type BB Non-Grounding Conduit Bushing 2-1/2 in Trade Phenolic

Product Description

Emerson BB-250 is a Type BB Non-Grounding Conduit Bushing designed for use with threaded rigid conduit and IMC. This bushing is made from phenolic material and is suitable for insulating applications. It can withstand a maximum temperature of 302 degrees Fahrenheit. The bushing has an outer diameter of three and three-eighths inches which fits securely into conduit systems.

• Designed for threaded rigid conduit and IMC
• Insulated performance with a maximum temperature rating of 302 degrees Fahrenheit
• Constructed from high-impact phenolic material

Product Highlights

This conduit bushing provides effective insulation and protection for wires and cables at the entry and exit points of conduits.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78312603118

Technical Specifications

• Type: Type BB Non-Grounding
• Color: Black
• Material: Phenolic
• Application: For threaded rigid conduit and IMC
• Dimensions: Three and three-eighths inches OD
• Trade Size: Two and one-half inches
• Insulation: Insulated
• Temperature Rating: 302 degrees Fahrenheit
• Standards/Approvals: ARRA Compliance, Buy American Act Compliance, RoHS Compliance, CSA 11584, UL File No. E20933
