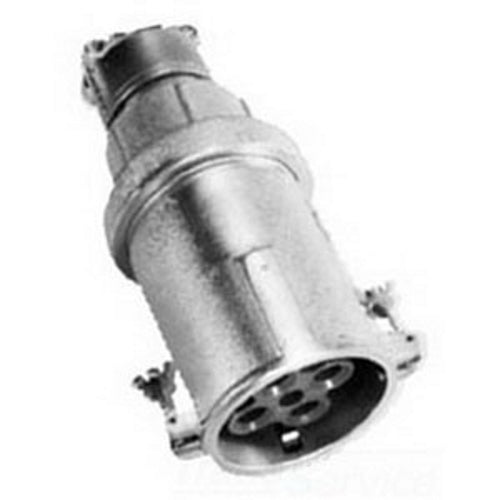

Emerson ARC20034E APP 200A CONN BODY ASSY 4PS2 2.500

Product Description

The Emerson ARC20034E is a durable pin and sleeve connector body designed for 3-phase grounding. This product features a weatherproof design and can handle up to 200 A. It operates at a frequency of fifty to four hundred Hertz and supports four poles with three wires.

• Weatherproof design suitable for outdoor use
• Handles 200 A with a NEMA 3/3R/4/4X rating
• Temperature range from -40 to 225 degrees Fahrenheit

Product Highlights

Reliable for heavy-duty applications like motor generator units, welders, and pumps.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: ARC20034E

Technical Specifications

• Amperage Rating: 200 A
• Application: AP20034E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction Applications
• Dimensions: 13 in L x 5-3/4 in W
• Frequency Rating: 50/400 Hz
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Temperature Rating: -40 to 225 degrees Fahrenheit
• Standards/Approvals: UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 2 Weatherproof
