Emerson ARC1044CD APP 100A CONN BODY ASSY 4P S1

Product Description

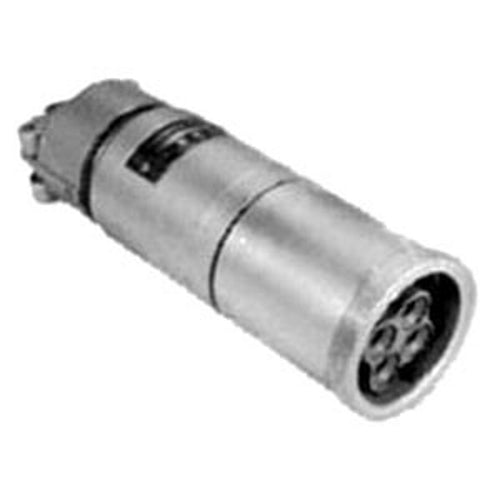

Emerson ARC1044CD is a pin and sleeve connector body designed for three-phase applications. This weatherproof connector operates at a voltage rating of six hundred to two hundred fifty VAC/VDC and has an amperage rating of one hundred A. The device is suitable for use in various heavy-duty applications. It adheres to NEMA 3, 3R, 4, and 4X ratings, ensuring safety in adverse conditions.

• Water resistant design
• Constructed from copper-free aluminum
• Suitable for portable or fixed electrical equipment

Product Highlights

This connector body features a unique grounding style that enhances safety and reliability across its applications.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: ARC1044CD

Technical Specifications

• Amperage Rating: 100 A
• Application: Motor generators, welders, pumps, compressors, and more
• Dimensions: 16 inches long x 4.25 inches wide
• Frequency Rating: 50/400 Hz
• Material: Copper-free aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 4
• Temperature Rating: -40 to 225 degrees Fahrenheit
• Voltage Rating: 600/250 VAC/VDC
