Emerson AP20034E APP 200 AMP PLUG ASSEM 4P S2 2.500

Product Description

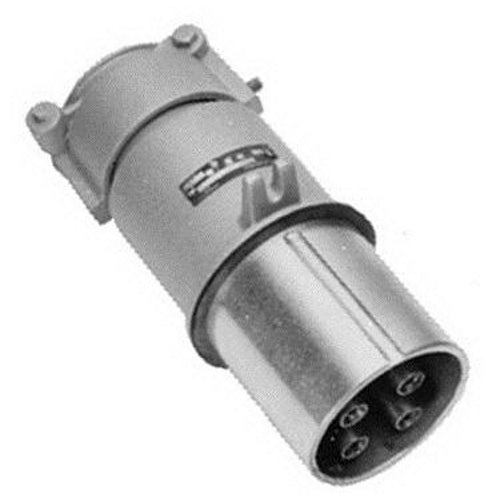

Emerson AP20034E is a reliable and durable plug designed for heavy-duty electrical applications. This plug operates at 250/600 VAC/VDC and carries a current of 200 Amps. It features a 3-phase grounding style with four poles and three wires, making it suitable for various equipment in demanding environments.

• Designed for portable and fixed electrical equipment
• NEMA 3/3R/4/4X rated for protection against harsh conditions
• Temperature rating of -40 to 225 degrees Fahrenheit

Product Highlights

This plug is ideal for use with generators, welders, and pumps. It is built to ensure safe and efficient power supply while withstanding tough working conditions.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 78138113126

Technical Specifications

• Amperage Rating: 200 A
• Application: ADR20034 Receptacle and ARC20034CD, Motor Generator Units, Welders, Pumps
• Dimensions: 11.94 in L x 6.81 in W
• Frequency Rating: 50/400 Hz
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Series: AP Series
• Standards/Approvals: UL 1682, UL 1686
• Temperature Rating: -40 to 225 degrees F
• Terminal Type: Pressure Wire
• Type: 3-Phase Grounding Style 2
• Voltage Rating: 250/600 VAC/VDC
