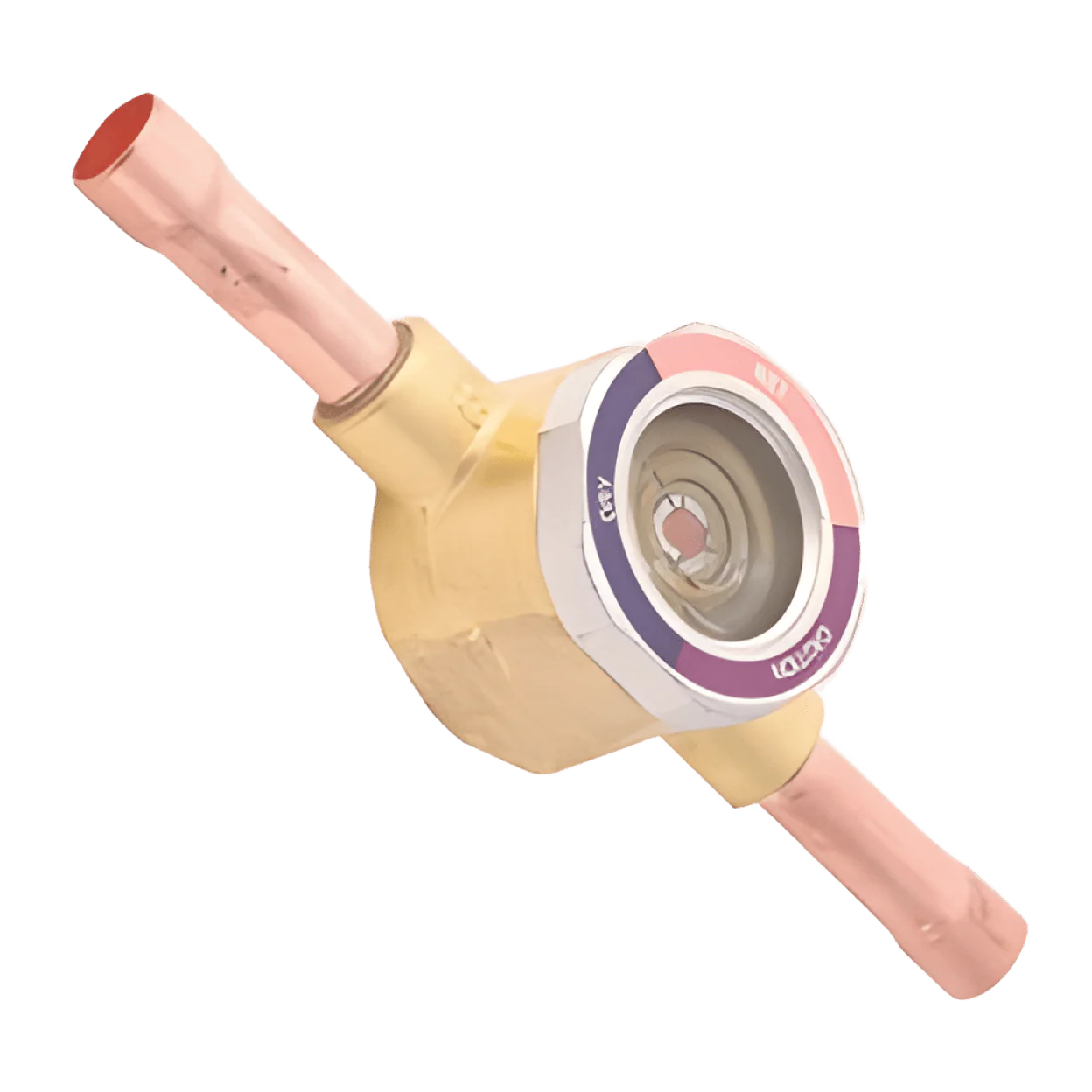

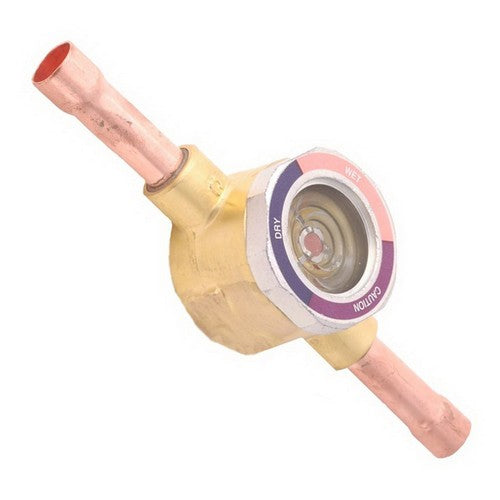

Emerson AMI-1TT4 Emerson AMI Type TT Sight Glass Moisture Indicator, 1/2 inch, Tube Stub x Tube Stub (OD Female)

Product Description

The Emerson AMI-1TT4 is a moisture indicator designed for precise measurement of refrigerant moisture levels. It features a half-inch connection and tube stub fittings, making it suitable for various HVAC applications. The overall length is four and fifty-nine sixty-fourths inches. The construction includes a brass body resistant to corrosion paired with solid copper fittings, ensuring longevity and reliability in demanding environments.

• Repairable design allows for easy maintenance
• Suitable for R-22 and R-410A refrigerants
• High accuracy moisture detection with up to 650 psig pressure rating

Product Highlights

This moisture indicator provides high sensitivity and is easy to monitor due to its wide angle viewing window. It is ideal for HVAC technicians ensuring systems operate efficiently.

Product Information

Standard Information

• Manufacturer: Emerson Climate Technologies
• Part Number: AMI-1TT4

Technical Specifications

• Type: Repairable
• Connection Size: 1/2 inch
• Connection Type: Tube Stub x Tube Stub (OD Female)
• Overall Length: 4-59/64 inch
• Construction: Brass Corrosion Resistant Body and Solid Copper Fittings
• Maximum Pressure Rating: 650 psig
• Standards: UL/CUL SA 9566
• Dimension A: 125 inch
• Dimension C: 11.9 inch
• Dimension D: 36.6 inch
• Dimension E: 9.7 inch
