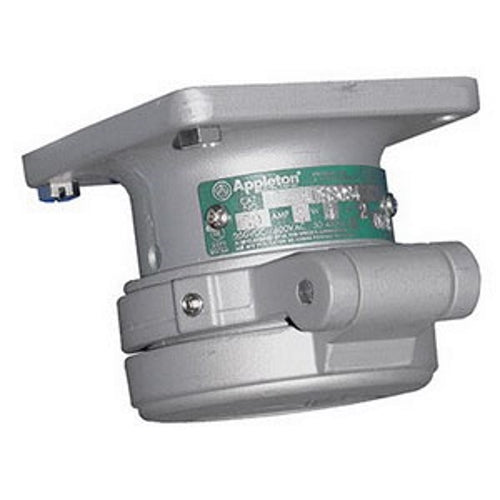

Emerson ADR3034 APP 3W-4P 30A 600V NEMA 3R/4X Pin/Sleeve Recep

Product Description

The Appleton Powertite ADR3034 is a pin and sleeve receptacle designed for heavy-duty applications. It operates at 600/250 VAC/VDC with a 30 amp rating. This receptacle is suitable for various industrial uses including welders, pumps, and portable equipment.

• Designed to protect against water intrusion
• Constructed with copper-free aluminum
• Meets NEMA 3/3R/4/4X ratings

Product Highlights

This receptacle is built for safety and reliability in harsh industrial environments.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Application: For use with various heavy-duty applications including motor generator units and shipping docks

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600/250 VAC/VDC
• Horsepower Rating: 20 hp
• Frequency Rating: 50/400 Hz
• Temperature Rating: -40 to 225 deg F
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Material: Copper-Free Aluminum
• Dimensions: 3.38 in H x 3.38 in W x 2.8 in D
