Emerson ADR15034 Appleton 150A Recpt 4PS2

Product Description

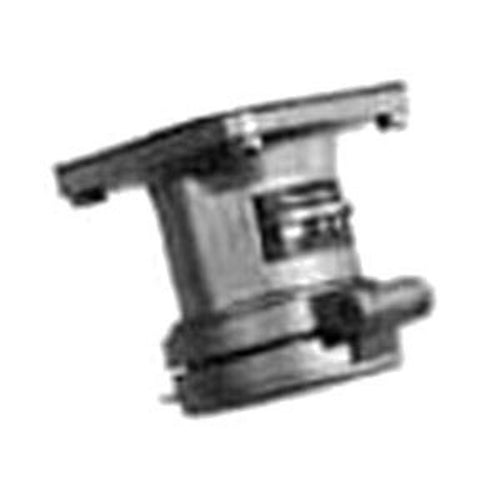

The Appleton ADR15034 is a pin and sleeve receptacle designed for safe and reliable power in heavy duty applications. This model supports three-phase grounding and operates at a voltage rating of six hundred or two hundred fifty volts AC or DC with a current capacity of one hundred fifty amps.

• Compatible with ACP15034CD and ACP15034DE clamping ring plugs.
• Temperature rating of negative forty to two hundred twenty-five degrees Fahrenheit.
• Meets NEMA 3, 3R, 4, and 4X ratings for outdoor and wet locations.

Product Highlights

This receptacle features a durable construction, ensuring protection against harsh conditions and providing safe electrical connections.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Application: Used in motor generator units, welders, pumps, cellular relay stations, and weatherproof enclosures.

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 600/250 VAC/VDC
• Frequency Rating: 50/400 Hz
• Material: Copper-Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Temperature Rating: -40 to 225 deg F
